Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-ZZ-PHC-1500
Document:
Video
Laser Navigation Agv Forklift Intelligent Handling System Unmanned Automatic Forklift.OEM processing and customization

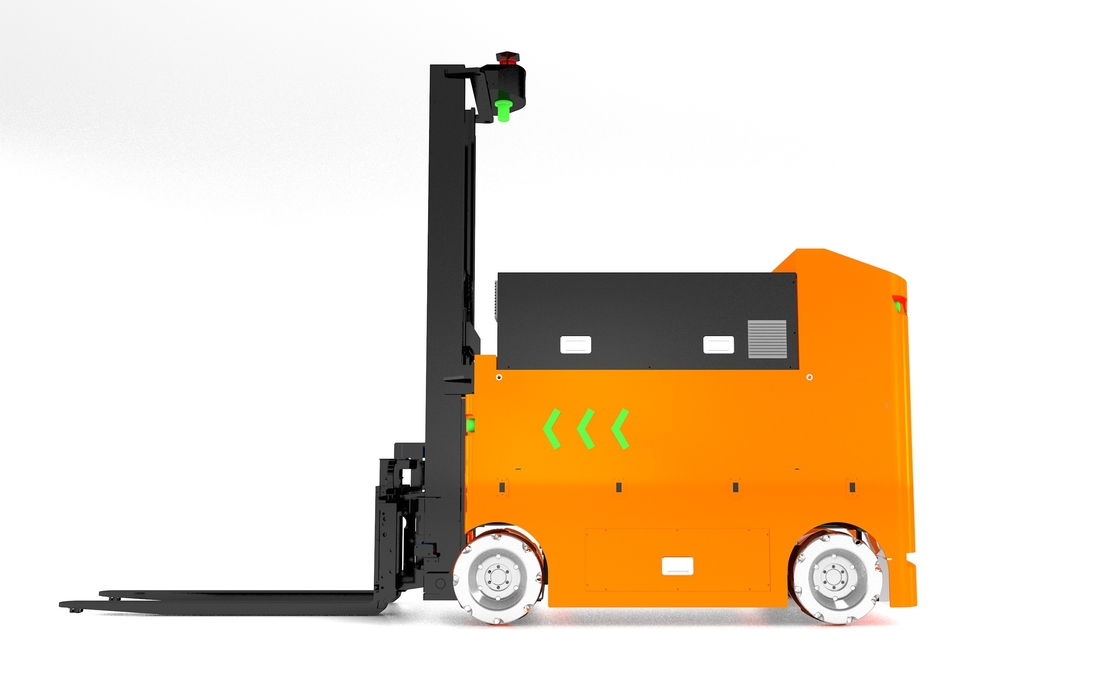

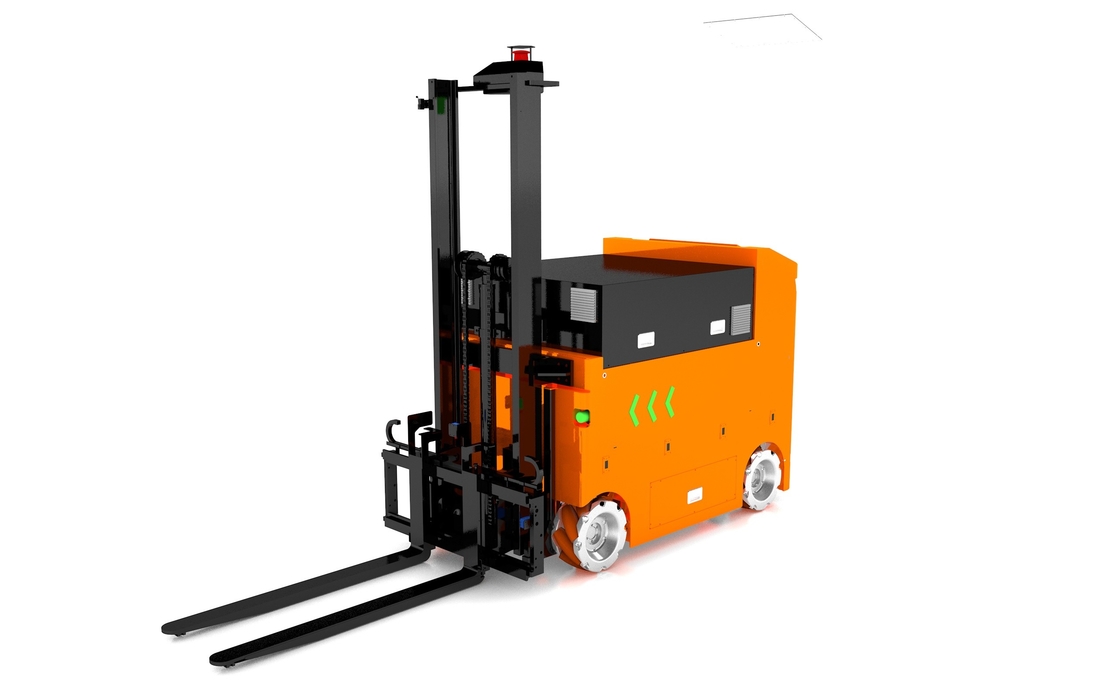

Omnidirectional unattended forklift
| Item | technical parameter |
| product name | Omnidirectional unattended forklift |
| product size | L3500W1100*H2433mm |
| load mode | Pick-up ahead |
| rated load | 1500KG |
| control mode | PLC |
| guiding mode | he laser guiding |
| Walking direction | forward, backward, left and right turn, bifurcation |
| drive mode | Mcnamara wheel drive |
| drive power | DC48V |
| travel speed | straight line 0-40m/min, turning 0-20m/min |
| turning radius | ≥2000mm |
| allows road flatness | ≤5mm |
| working mode | for 24 hours |
| climbing ability | ≤5% |
| charging mode | online charging (side charging |
| obstacle sensor safety sensing range | detection distance ≤3m (adjustable) , sensor detection angle ≤270 ° -LRB-adjustable) , emergency braking distance < 20mm |
| safety protection | front obstacle detection sensor + double protection of safety touch-edge anti-collision mechanism + emergency stop switch |
| alarm form | sound and light alarm |
| work noise,dB(A) | battery 80Ah ternary lithium battery under 70dB (a) |
| battery | 48V 210Ah |
| design Life | >10 years |
