Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-CC-DS-1500
Document:
Video
Video
Video
Video

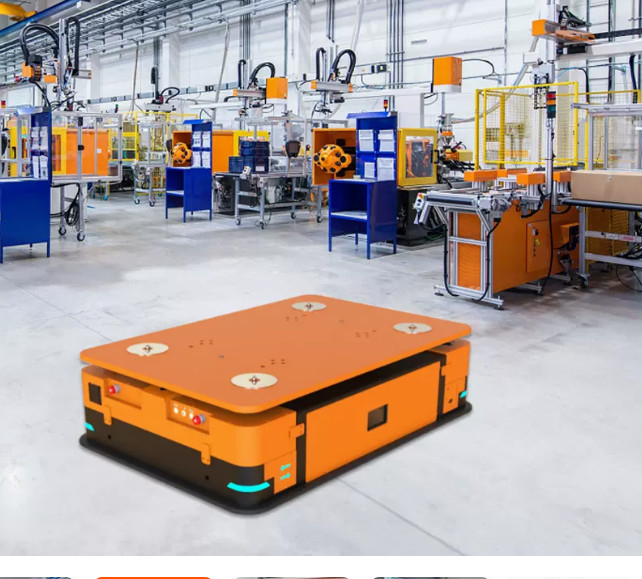

AGV Automated Guided Vehicle Omnidirectional back lifting AGV, load 1500KG, warehousing industry handling
| Parameter | Details |
|---|---|
| Product Name | Fork-type Omnidirectional AGV |
| Product Dimensions | Length × Width × Height (customizable according to customer requirements) |
| Loading Mode | Electrically carries various custom clamps |
| Load Capacity | 1000KG (customizable) |
| Control Mode | PLC, Microcontroller (customizable) |
| Navigation Mode | Laser, QR Code, Magnetic Strip (customizable) |
| Travel Direction | Forward, Backward, Left Turn, Right Turn, Branching, 360° Rotation, Lateral, Transverse |
| Drive Mode | Dual Steering Wheel Drive or Mecanum Wheels (customizable) |
| Drive Power Supply | DC 48V |
| Travel Speed | Straight: 0-40 m/min, Turn: 0-20 m/min |
| Repeat Positioning Accuracy | ±5mm |
| Allowed Ground Flatness | ≤5 mm |
| Working Mode | Continuous operation for 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online charging (side charging) |
| Obstacle Sensor Safety Range | Detection distance: ≤3 m (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency stop distance: < 20 mm |
| Safety Protection | Front obstacle detection sensors, dual safety edge collision protection mechanism, emergency stop switch |
| Alarm Mode | Audible and visual alarm, tri-color light, music horn |
| Working Noise | Below 70 dB (A) |
| Battery | Type: Lithium Iron Phosphate, Voltage: 48V, Capacity: customizable |
| Design Life | >10 years |
