Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-BZ-PHZ-2000
Document:
Video

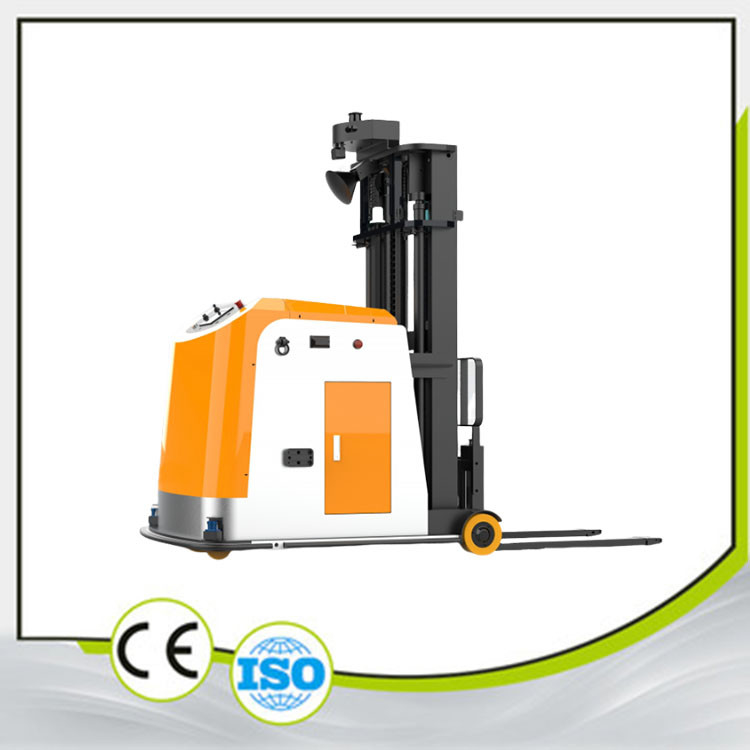

Intelligent Unmanned Forklift Counterbalanced load 2T forklift, lifting height 2m, CAN communication
| Feature | Technical Parameters |
|---|---|
| Model | |
| Power | Electric |
| Operation Mode | Laser Navigation |
| Rated Load Capacity Q (kg) | 2000 |
| Load Center Distance C (mm) | 500 |
| Weight with Battery (kg) | 2370 |
| Wheel Type (Front/Rear) | Polyurethane/Polyurethane |
| Front Wheel Size (mm) | Φ210x85 |
| Rear Wheel Size ∅×w (mm) | φ254*102 |
| Balance Wheel Size ∅×w (mm) | φ125x50 |
| Wheelbase y (mm) | 1300 |
| Bearing Distance X (mm) | 120 |
| Travel Speed (m/s) | 1.5 |
| Lifting Speed, Unloaded/Loaded (mm/s) | 125/100 |
| Lowering Speed, Unloaded/Loaded (mm/s) | 85/150 |
| Travel Brake | Electromagnetic Brake |
| Gradeability (Unloaded/Loaded) | 5%/3% |
| Drive Motor Power (kW) | 3.0 |
| Lifting Motor Power (kW) | 3.0 |
| Battery Type | Lithium Battery |
| Battery Voltage/Capacity V/Ah | 24/200 |
| Charger V/A | 24/100 |
| Steering Motor Power (kW) | Servo 0.75 |
| Drive Control Mode | AC |
| Driver's Ear Noise Level | According to EN12053 70 dB(A) |
| Mast Closed Height h1 (mm) | 2095 |
| Lifting Height h (mm) | 3000 |
| Max Height with Mast Extended h4 (mm) | 3960 |
| Fork Height when Mast Retracted h3 (mm) | 40 |
| Vehicle Length l (mm) | 2770 |
| Fork Size s/e/l (mm) | 401221070 |
| Fork Width b5 (mm) | 680 |
| Minimum Ground Clearance (Wheelbase Center) m2 (mm) | 60 |
| Stacking Aisle Width (1200 pallet across forks) Ast (mm) | 2848+400 (1000*1200 pallet) |
| Minimum Turning Radius Wa (mm) | 1577 |
| Vehicle Width b1 (mm) | 1180 |
| Wheel Track, Front Wheels b2 (mm) | 1040 |
