Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-FB-STSJ
Document:

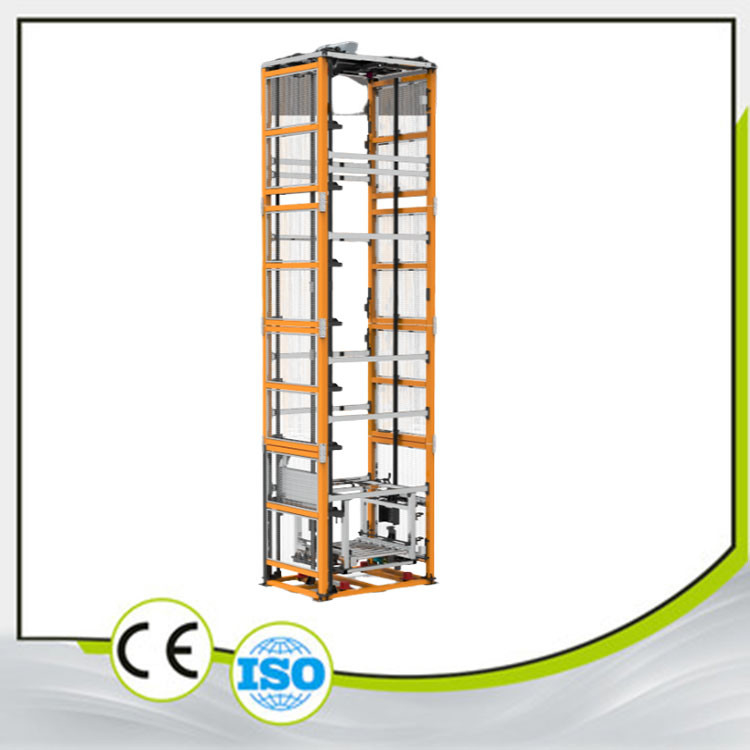

Automated Non Standard Equipment Use three-dimensional warehouse or shuttle car to lift and transport, can be customized
| 技术参数 (Technical Parameters) | 详情 (Details) |
|---|---|
| 额定载荷 (Rated Load) | 50-5000KG |
| 提升机高度 (Lifting Height) | 2-20m |
| 提升驱动形式 (Lifting Drive Type) | 短节距精密滚子链 (Short Pitch Precision Roller Chain) |
| 提升速度 (Lifting Speed) | ≤60m/min |
| 提升加速度 (Lifting Acceleration) | ≤1m/s² |
| 提升定位精度 (Lifting Positioning Accuracy) | ±5mm |
| 输送方式 (Conveying Method) | 链式/辊式 (Chain/Comb) |
| 输送速度 (Conveying Speed) | 12-20m/min |
| 操作方式 (Operation Mode) | 手动,自动,半自动 (Manual, Automatic, Semi-Automatic) |
| 调速方式 (Speed Regulation Mode) | 变频调速 (Variable Frequency Speed Regulation) |
| 定位方式 (Positioning Method) | 编码器/感光/终端 (Encoder/Optical/Terminal) |
| 备注 (Note) | 可接受其它量程定制 (Other Ranges Customizable) |
