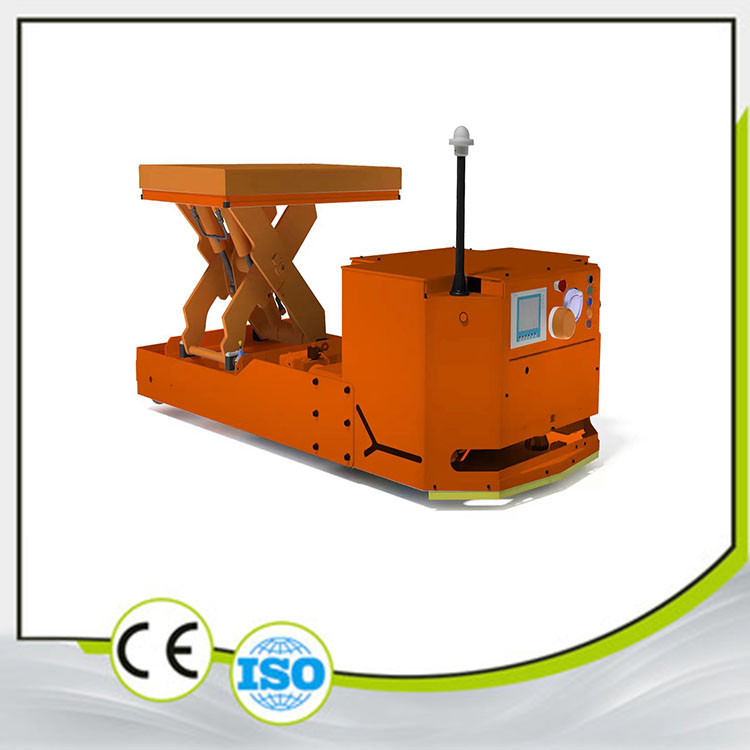

AGV Automated Guided VehicleElectric Rigid Chain Mechanism Lifting Platform Load 2000kg, Steering Wheel Drive
Lifting Omnidirectional Platform AGV Technical Specifications
| Item | Technical Parameters |
|---|---|
| Product Name | Lifting Omnidirectional Platform AGV |
| Product Dimensions | L x W x H mm (customizable) |
| Loading Mode | Electric rigid chain structure platform lifting, lifting stroke customizable 1-2M |
| Load Capacity | 1000KG-2000KG (customizable) |
| Control Mode | PLC, Microcontroller (customizable) |
| Navigation Mode | Laser, QR code, Magnetic tape (customizable) |
| Travel Direction | Forward, backward, left turn, right turn, bifurcation, 360° rotation, lateral, transverse, omnidirectional |
| Drive Mode | Dual steering wheel drive |
| Drive Steering Power | 1000W * 2, 750W * 2 |
| Drive Power Supply | DC 48V |
| Travel Speed | Straight: 0-40 m/min, Turning: 0-20 m/min |
| Repeat Positioning Accuracy | ±5mm |
| Allowed Surface Flatness | ≤5 mm |
| Working Mode | Can work continuously for 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online charging (side charging) |
| Obstacle Sensor Safety Sensing Range | Detection distance: ≤3 m (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20 mm |
| Safety Protection | Front obstacle detection sensor, dual protection safety edge anti-collision mechanism, emergency stop switch |
| Alarm Mode | Audible and visual alarm, tri-color light, musical horn |
| Working Noise | Below 70 dB (A) |
| Battery | Type: Lithium iron phosphate battery, Voltage: 48V, Capacity: 200Ah (customizable) |
| Design Life | >10 years |
