Name: Remote Control AGV Automated Guided Vehicle Omnidirectional Climbing
Brand: Guangzhou Tianyue Automation Technology Co., Ltd.
SKU: TY-FB-ZRPT-1000
Availability: InStock

Remote Control AGV Automated Guided Vehicle Omnidirectional Climbing

Remote Control AGV Vehicle

Remote Control Automated Guided Vehicle

AGV Vehicle Omnidirectional Climbing

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TY-FB-ZRPT-1000

Request A Quote

No.	Item	Unit	Design Value
Machine Features
1	Product Model		WJ10
2	Rated Load (Q)	kg	1000
3	Self Weight (with battery)	kg	2800
4	Tire Type		Mecanum Wheel
5	Number of Wheels		4
6	Control Mode		Stand-on/Remote Control
7	Power Source		Battery
Dimension Parameters
8	Maximum Lifting Height (H1)	mm	3000 (customizable)
9	Overall Length (L)	mm	2800
10	Overall Width (W)	mm	1500
11	Overall Height (folded) (H)	mm	2050
12	Max Height When Operating	mm	4120 (customizable)
13	Wheelbase	mm	2090
14	Track Width	mm	1322
15	Minimum Ground Clearance	mm	50
Performance Parameters
16	Max Forward Speed (unloaded/loaded)	km/h	1.8/1.0
17	Max Side Speed (unloaded/loaded)	km/h	1.2/0.8
18	Max Lifting Speed (unloaded/loaded)	mm/s	18
19	Max Gradeability (unloaded/loaded)	%	5/3
20	Diagonal Dimension (A)	mm	2915
21	Operating Accuracy	mm	±0.5
Others
22	Battery Capacity	V/Ah	48/220

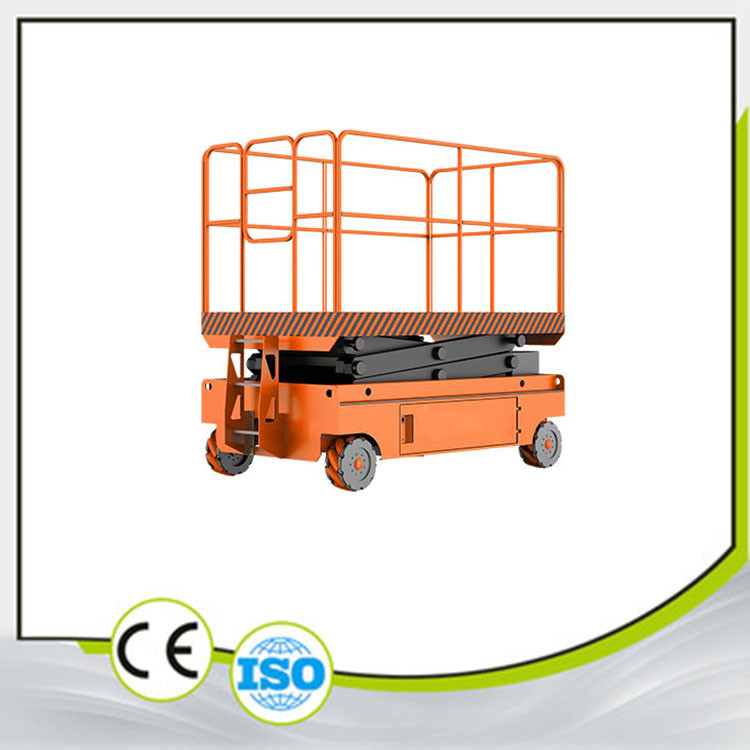

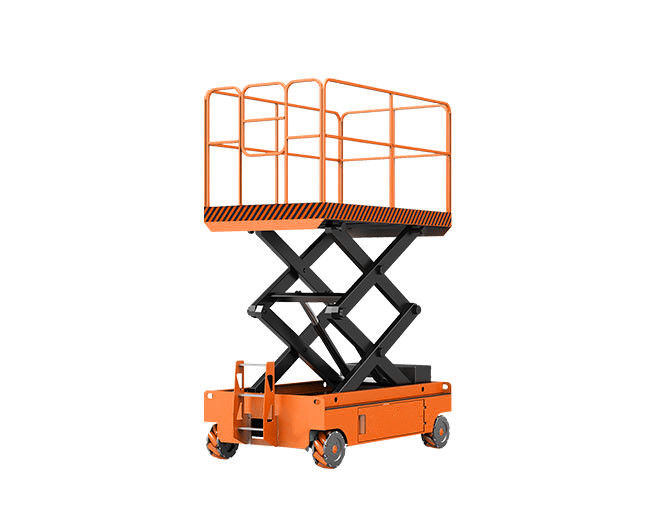

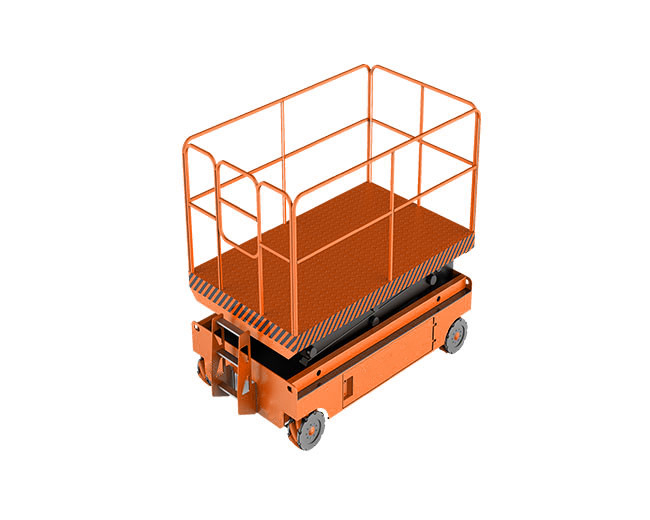

Theomnidirectional scissor lift work platform revolutionizes traditional aerial work vehicles. With zero turning radius and lateral movement, it offers all-round, seamless, and arbitrary drifting capabilities. The intelligent handle remote control, with multiple control modes, is convenient and user-friendly. It allows quick and precise access to the desired work position, eliminating the hassle of reversing and repositioning associated with traditional aerial work vehicles.
