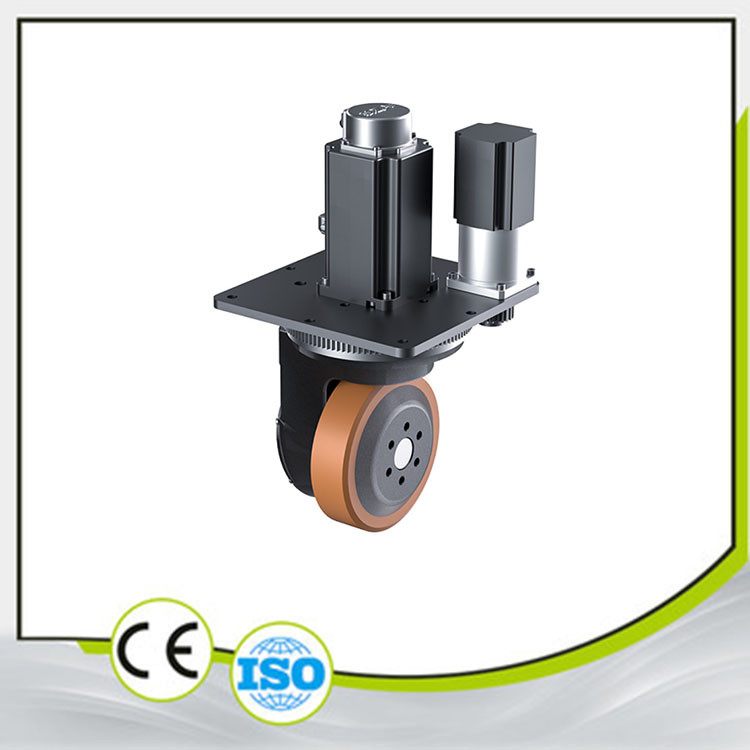

Name: 750W Drive AGV Steering Wheel Assembly Drive Steering 200W Customization
Brand: Guangzhou Tianyue Automation Technology Co., Ltd.
SKU: DL-LS-150
Availability: InStock

750W Drive AGV Steering Wheel Assembly Drive Steering 200W Customization

customization AGV Steering Wheel

750W Drive AGV Steering Wheel

750W Drive agv drive unit

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

DL-LS-150

Request A Quote

AGV single-wheel steering wheel assembly drive, vertical series integrated 750W drive, steering 200W customized

Travel Wheel Part Parameters

Parameter	Value
Motor Type	Servo/DC/AC
Power [W]	750
Voltage [V]	48
Current [A]	20
Speed [rpm]	3000
Reduction Ratio [i]	22.5
Load Capacity [kg]	500
IP Rating	20-65

Steering Motor Parameters

Parameter	Value
Motor Type	Servo/DC/AC
Power [W]	200
Voltage [V]	48
Current [A]	5.5
Speed [rpm]	3000
Reduction Ratio [i]	40
IP Rating	20-65

Optional Accessories

Accessory	Description
Limit Switch	Limit Switch
Origin Switch	Origin Switch
External Encoder	External Encoder (Speed Measurement Terminal)
Potentiometer	Potentiometer
