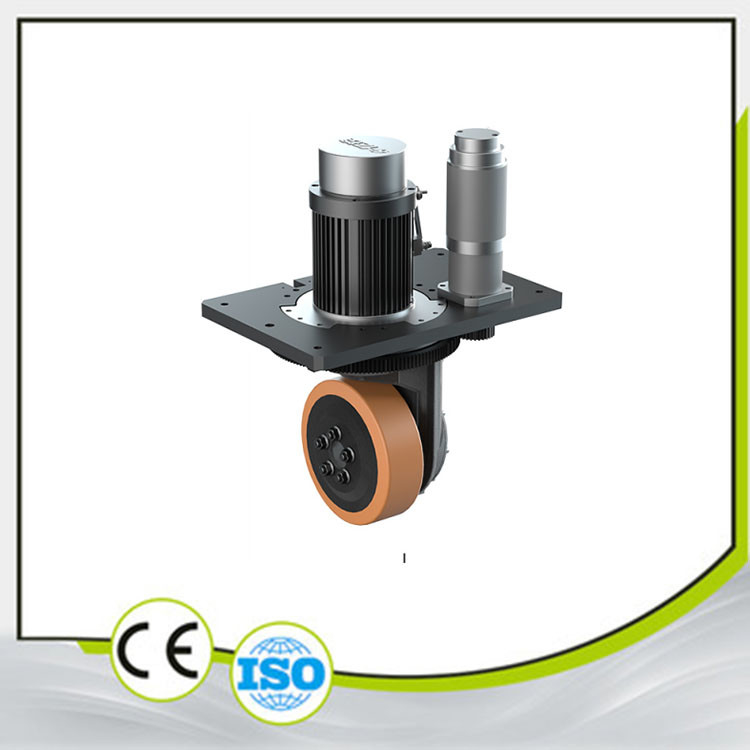

Name: Customizable Steering Power 750W AGV Drive System Vertical Integrated
Brand: Guangzhou Tianyue Automation Technology Co., Ltd.
SKU: DL-LS-230
Availability: InStock

Customizable Steering Power 750W AGV Drive System Vertical Integrated

750W AGV Drive System

Customizable AGV Drive System

Customizable agv drive unit

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

DL-LS-230

Request A Quote

AGV single wheel steering wheel assembly drive, vertical series integrated 1500W drive, steering 750W customized

Travel Wheel Part Parameters

Parameter	Value
Motor Type	Servo/DC/AC
Power [W]	1500
Voltage [V]	24/48
Current [A]	34/76
Speed [rpm]	2500/3000
Reduction Ratio [i]	30
Load Capacity [kg]	1500
IP Rating	20-65

Steering Motor Parameters

Parameter	Value
Motor Type	Servo/DC/AC
Power [W]	400/650
Voltage [V]	24/48
Current [A]	9.9/24/36
Speed [rpm]	3000/3500
Reduction Ratio [i]	33.92/50
IP Rating	20-65

Optional Accessories

Accessory	Description
Limit Switch	Limit Switch
Origin Switch	Origin Switch
External Encoder	External Encoder (Speed Measurement Terminal)
Potentiometer	Potentiometer
