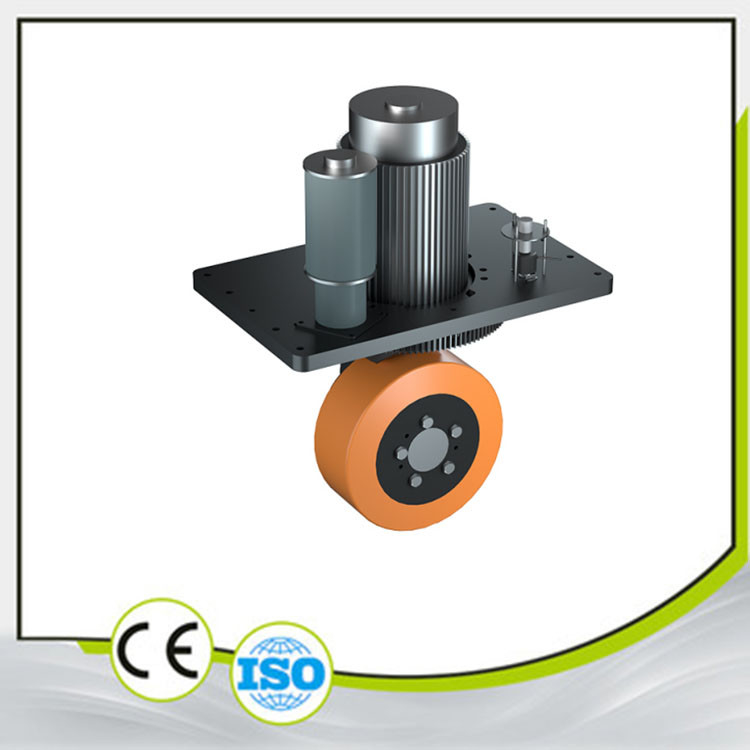

Vertical Series Integrated 3000W AGV Steering Wheel Assembly Drive Customized

Vertical Series Integrated 3000W AGV Steering Wheel Assembly Drive Customized

3000W AGV Steering Wheel

AGV Steering Wheel customized

customized agv wheel drive

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

DL-LS-310

Document:

Product Brochure PDF

Contact Us
Request A Quote
Vertical Series Integrated 3000W AGV Steering Wheel Assembly Drive Customized Vertical Series Integrated 3000W AGV Steering Wheel Assembly Drive Customized Vertical Series Integrated 3000W AGV Steering Wheel Assembly Drive Customized
Product Details
Wheel Diameter:
Diameter 310mm
Motor Way:
Servo Motor
Voltage:
48V
Driving Power:
3000W
Steering Power:
650W
Series Type:
Vertical Integrated
Highlight:

3000W AGV Steering Wheel

,

AGV Steering Wheel customized

,

customized agv wheel drive

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden box
Delivery Time
30 work days
Payment Terms
T/T
Supply Ability
100
RELATED PRODUCTS
Good price Horizontal Planetary Reducer Series 1500W AGV Drive Unit Wheel Diameter 250mm online

Horizontal Planetary Reducer Series 1500W AGV Drive Unit Wheel Diameter 250mm

Get Best Price
Good price Wheel Diameter 200mm AGV Wheel Motor AGV Drive System High Efficiency online

Wheel Diameter 200mm AGV Wheel Motor AGV Drive System High Efficiency

Get Best Price
Good price 750Watt AGV Steering Drive Wheel Horizontal Planetary Reducer Series Integrated online

750Watt AGV Steering Drive Wheel Horizontal Planetary Reducer Series Integrated

Get Best Price
Good price Industrial AGV Steering Wheel Assembly Drive Integrated 400W Wheel Diameter 150mm online

Industrial AGV Steering Wheel Assembly Drive Integrated 400W Wheel Diameter 150mm

Get Best Price
Contact Us
13570415240
mkliangjintian@gmail.com
Contact Now
Product Description

AGV single-wheel steering wheel assembly drive, vertical series integrated 3000W drive, steering 650W customized

Travel Wheel Part Parameters

Parameter Value
Motor Type Servo/DC/AC
Power [W] 3000
Voltage [V] 24/48
Current [A] 68/137
Speed [rpm] 2500
Reduction Ratio [i] 23
Load Capacity [kg] 2200
IP Rating 20-65

Steering Motor Parameters

Parameter Value
Motor Type Servo/DC/AC
Power [W] 600
Voltage [V] 24/48
Current [A] 15/38.5
Speed [rpm] 2500
Reduction Ratio [i] 45/50
IP Rating 20-65

Optional Accessories

Accessory Description
Limit Switch Limit Switch
Origin Switch Origin Switch
External Encoder External Encoder (Speed Measurement Terminal)
Potentiometer Potentiometer
