Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TYD400
Document:
Video
Video
Video
Video

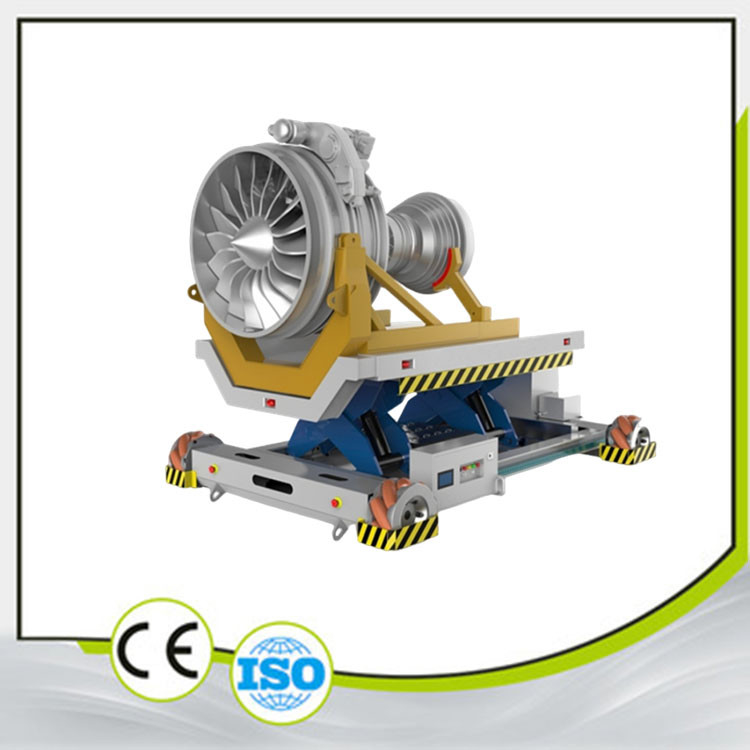

AGV Automated Guided Vehicle Engine installation work platform jacking, attitude adjustment, docking and installation wo
| Model | TYD350 | TYD400 | TYD450 | TYD400 | TYD300 |
|---|---|---|---|---|---|
| Dimensions (Length) mm | 3850 | 5300 | 5500 | 6000 | 6800 |
| Dimensions (Width) mm | 2650 | 3000 | 3000 | 3200 | 3500 |
| Dimensions (Height) mm | 980 | 1340 | 1350 | 1400 | 1500 |
| Max Platform Height (mm) | 3500 | 4000 | 4500 | 4000 | 3000 |
| Platform Load Capacity (kg) | 1000 | 2000 | 3000 | 5000 | 7500 |
| Max Horizontal Extension (mm) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Platform Slide Extension Load (kg) | 300 | 300 | 300 | 300 | 300 |
| Travel Speed (Retracted) m/s | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Travel Speed (Extended) m/s | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Full Load Lifting Speed (s) | 30 | 45 | 55 | 60 | 70 |
| Equipment Weight (kg) | 3500 | 4000 | 4500 | 5000 | 8500 |
| Wheel Diameter (mm) | 457.2 (18") | 457.2 (18") | 508 (20") | 508 (20") | 558 (22") |
| Single Wheel Load Capacity (kg) | 3000 | 3000 | 4000 | 4000 | 5000 |
| Number of Wheels | 4 | 4 | 4 | 4 | 4 |
| Number of Drive Motors | 4 | 4 | 4 | 4 | 4 |
| Minimum Turning Radius | 0m | 0m | 0m | 0m | 0m |
| Moving Speed | 0-0.8m/s Adjustable | 0-0.8m/s Adjustable | 0-0.8m/s Adjustable | 0-0.8m/s Adjustable | 0-0.8m/s Adjustable |
| Positioning Accuracy | ±5mm | ±5mm | ±5mm | ±5mm | ±5mm |
| Control Method | Wired/Wireless Optional | Wired/Wireless Optional | Wired/Wireless Optional | Wired/Wireless Optional | Wired/Wireless Optional |
| Safety Protection | Ultrasonic/Infrared/Safety Edge/Laser Obstacle Avoidance Optional | Ultrasonic/Infrared/Safety Edge/Laser Obstacle Avoidance Optional | Ultrasonic/Infrared/Safety Edge/Laser Obstacle Avoidance Optional | Ultrasonic/Infrared/Safety Edge/Laser Obstacle Avoidance Optional | Ultrasonic/Infrared/Safety Edge/Laser Obstacle Avoidance Optional |
| Braking Method | Parking Brake/Control Unlock/Electronic Brake/Mechanical Brake Optional | Parking Brake/Control Unlock/Electronic Brake/Mechanical Brake Optional | Parking Brake/Control Unlock/Electronic Brake/Mechanical Brake Optional | Parking Brake/Control Unlock/Electronic Brake/Mechanical Brake Optional | Parking Brake/Control Unlock/Electronic Brake/Mechanical Brake Optional |
| Battery Type | Lithium Battery | Lithium Battery | Lithium Battery | Lithium Battery | Lithium Battery |
| Charging Method | Wired Charger | Wired Charger | Wired Charger | Wired Charger | Wired Charger |
| Endurance Time (Full Load) | 6h | 6h | 6h | 6h | 6h |
| Endurance Time (No Load) | 10h | 10h | 10h | 10h | 10h |
| Protection Level | IP54 | IP54 | IP54 | IP54 | IP54 |
| Working Environment | Temperature: -10℃~+55℃; Humidity: ≤95% | Temperature: -10℃~+55℃; Humidity: ≤95% | Temperature: -10℃~+55℃; Humidity: ≤95% | Temperature: -10℃~+55℃; Humidity: ≤95% | Temperature: -10℃~+55℃; Humidity: ≤95% |
| Storage Environment | Temperature: -15℃~+75℃; Humidity: ≤95% | Temperature: -15℃~+75℃; Humidity: ≤95% | Temperature: -15℃~+75℃; Humidity: ≤95% | Temperature: -15℃~+75℃; Humidity: ≤95% | Temperature: -15℃~+75℃; Humidity: ≤95% |
| Remarks | The above parameters are for reference only, the actual signed technical agreement shall prevail, and non-standard customization can be undertaken. | The above parameters are for reference only, the actual signed technical agreement shall prevail, and non-standard customization can be undertaken. | The above parameters are for reference only, the actual signed technical agreement shall prevail, and non-standard customization can be undertaken. | The above parameters are for reference only, the actual signed technical agreement shall prevail, and non-standard customization can be undertaken. | The above parameters are for reference only, the actual signed technical agreement shall prevail, and non-standard customization can be undertaken. |

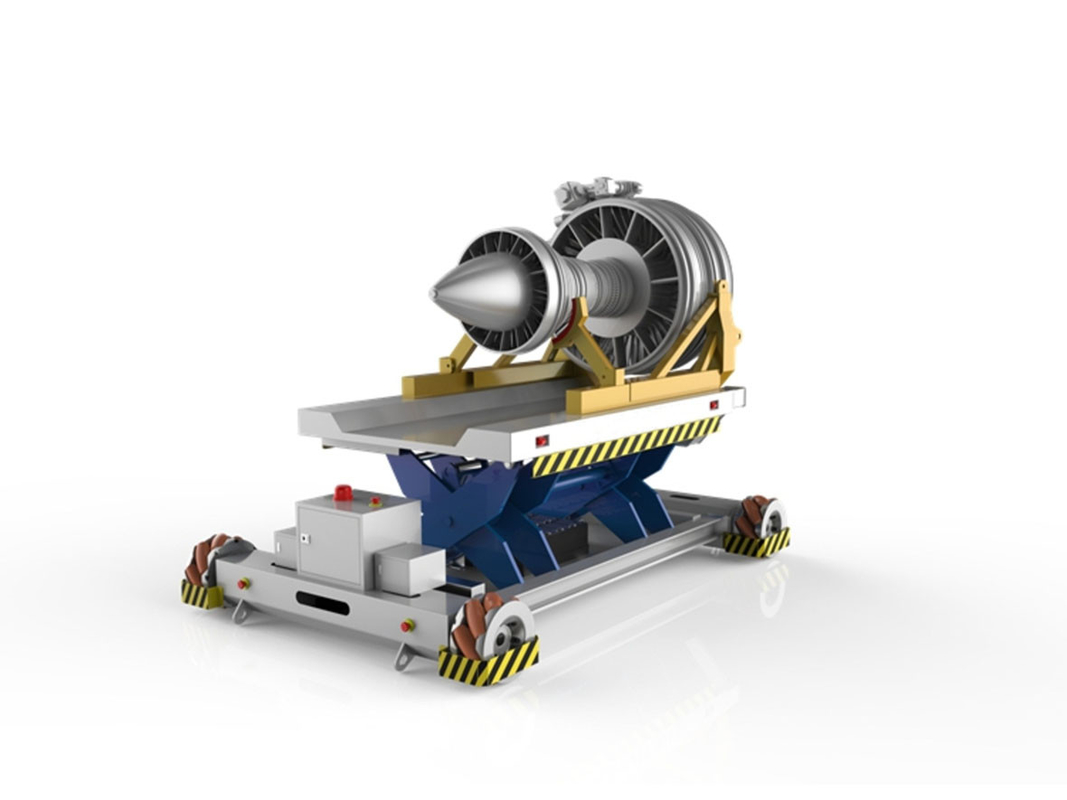

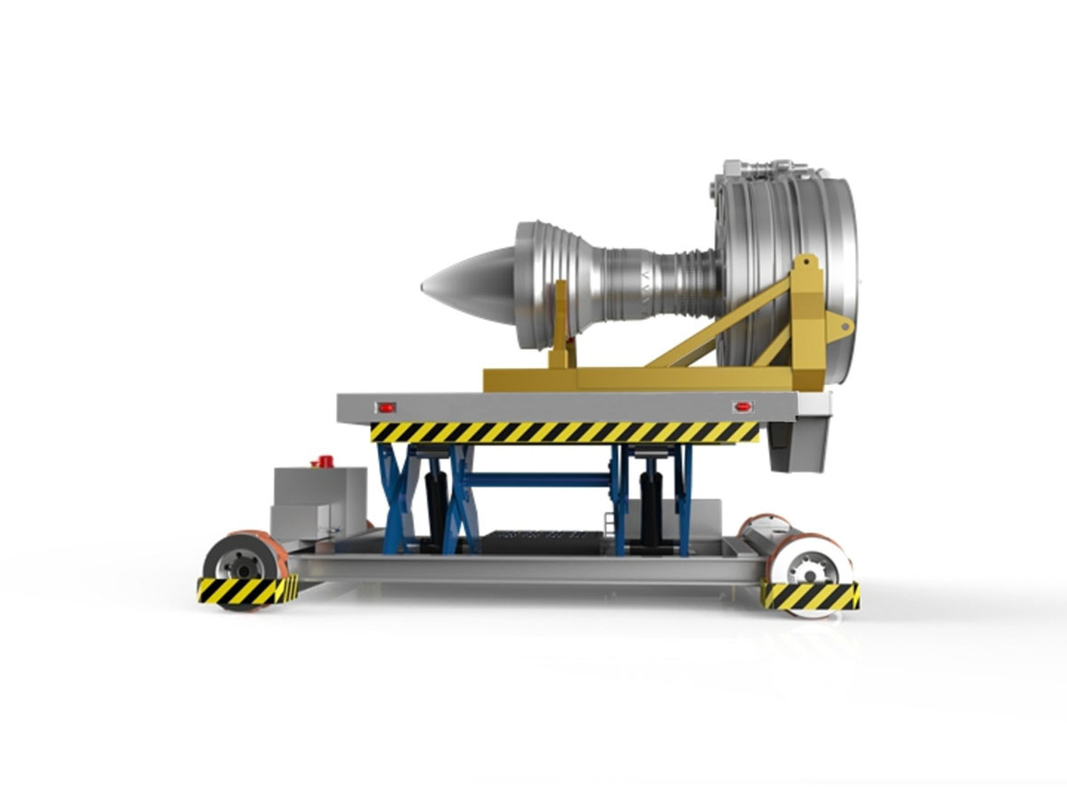

The omnidirectional engine installation vehicle is an omnidirectional engine installation work platform specially tailored for the replacement and installation of military and civil aircraft engines. During the installation process, the lifting, attitude adjustment, and docking installation work run smoothly, and the lifting operation is flexible, which can realize It rotates 360° in place to save time for getting into position and evacuation. It is equipped with ultrasonic anti-collision prompts and safety edges around it to ensure that the aircraft and people are not damaged. It is also equipped with a vertical sensor that will alarm when the body tilts 3 degrees. The platform is independently driven by four mecanum wheels. With the cooperation of the four wheels' different steering and speed, the platform can realize forward and backward in the plane, transverse translation, lateral movement, rotation around the center, and real-time steering forward (both front and rear). Can) five major walking functions; at the same time, the platform also has functions such as autonomous navigation, obstacle avoidance (alarm and automatic parking when encountering obstacles), emergency parking, power detection, etc., and the operation and control are simple and convenient.
