Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
JS-3000-T
Document:

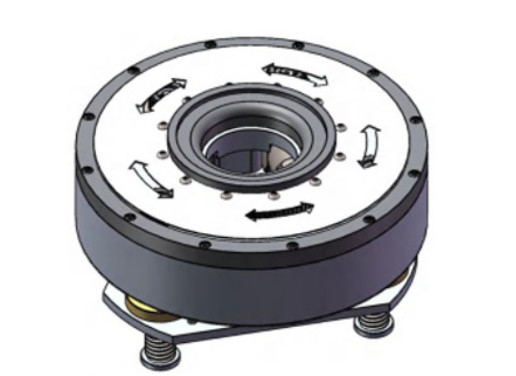

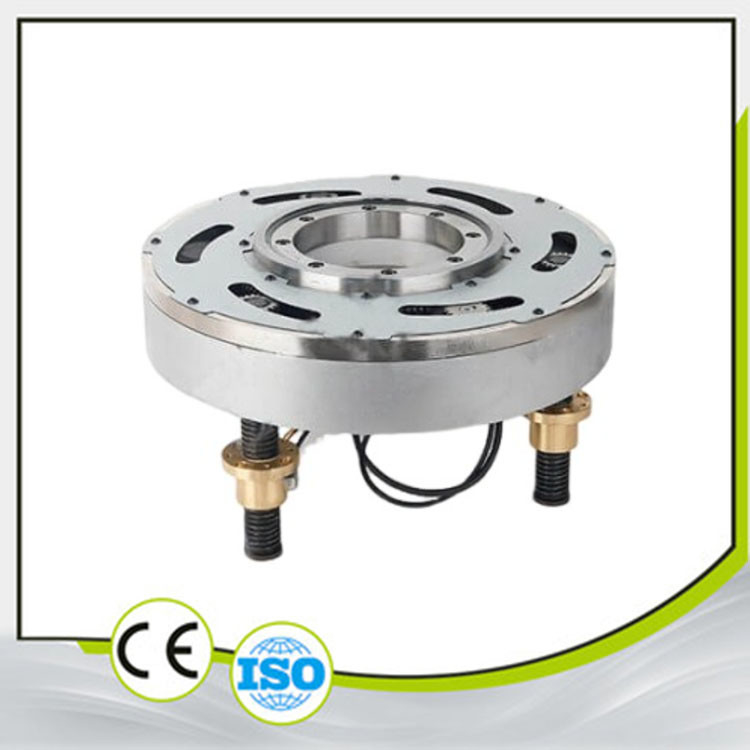

Rotary lifting mechanism, suitable for warehousing AMR, maximum lifting capacity 3000KG, stroke height 50MM, customized
| model
|
Lift motor (servo)
And machine (servo) |
Rotary motor (servo)
And machine (servo) |
route or distance of travel
|
Lift limit
|
Rotation limit
|
Lift speed ratio
|
Rotation speed ratio
|
Lift speed
|
spin velocity
|
maximum load
|
||||
| power | voltage | speed | power | voltage | speed | |||||||||
| W | V(DC) | r/min | W | V(DC) | r/min | mm | Cyker | Cyker | i | i | mm/s | 90° /s | kg | |
| TY X -500-60-160 | 400 | 48 | 3000 | 400 | 48 | 3000 | 60 | NPN | NPN | 1:30 | 1:30 | 10 | 1.7 | 500 |
| TY X -1000-60-160 | 600 | 48 | 3000 | 600 | 48 | 3000 | 60 | NPN | NPN | 1:30 | 1:30 | 10 | 1.7 | 1000 |
