Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-QYS-1500
Document:
Video

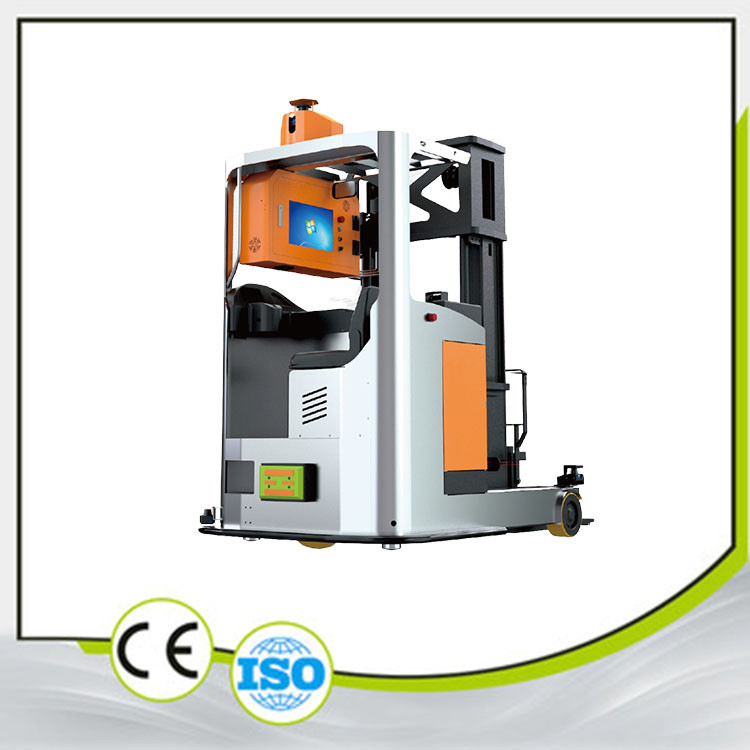

Intelligent Unmanned Forklift Reach type forklift AGV, stack height 2m, load weight 1500KG, can be customized
| Feature | Technical Parameters |
|---|---|
| Model | CQD20EJ-30 |
| Power | Electric |
| Operation Mode | Laser Navigation |
| Rated Load Capacity Q (kg) | 2000 |
| Load Center Distance C (mm) | 500 |
| Weight with Battery (kg) | 2800 |
| Wheel Type | Polyurethane |
| Drive Wheel Size (mm) | Ф382*142 |
| Load Wheel Size ∅×w (mm) | φ267*114 |
| Wheel Track (Load Wheels) b11 (mm) | 1180 |
| Wheelbase y (mm) | 1620 |
| Drive Control Mode | AC |
| Mast Closed Height h1 (mm) | 2105 |
| Lifting Height h3 (mm) | 3000 |
| Max Height with Mast Extended h4 (mm) | 3965 |
| Overhead Guard Height h14 (mm) | 2180 |
| Vehicle Length (without/with fork) L (mm) | 2136/2600 (including touch edges) |
| Fork Ground Clearance h3 (mm) | 45 |
| Fork Dimensions s/e/l (mm) | 122401070 |
| Fork Adjustment Range b5 (mm) | 244-705 |
| Minimum Ground Clearance (Wheelbase Center) m2 (mm) | 70 |
| Stacking Aisle Width (1200 across forks) Ast (mm) | 2855+400 (1000*1200 pallet) |
| Minimum Turning Radius Wa (mm) | 2050 |
| Vehicle Width b1 (mm) | 1460 (including touch edges) |
| Reach Distance L (mm) | 655 |
| Maximum Travel Speed, Unloaded/Loaded (km/h) | 2.2/1.9 |
| Lifting Speed, Unloaded/Loaded (m/s) | 0.240/0.120 |
| Lowering Speed, Unloaded/Loaded (m/s) | 0.270/0.305 |
| Travel Brake | Electromagnetic Brake |
| Maximum Gradeability (Unloaded/Loaded %) | 8/6 |
| Drive Motor Power kw | 6.5 |
| Lifting Motor Power kw | 8.6 |
| Battery Type | Lithium Battery |
| Battery Voltage/Capacity V/Ah | 48/300 |
| Charger V/A | 48/100 |
| Steering Motor Power kw | Servo 0.75 |
