Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-FB
Document:

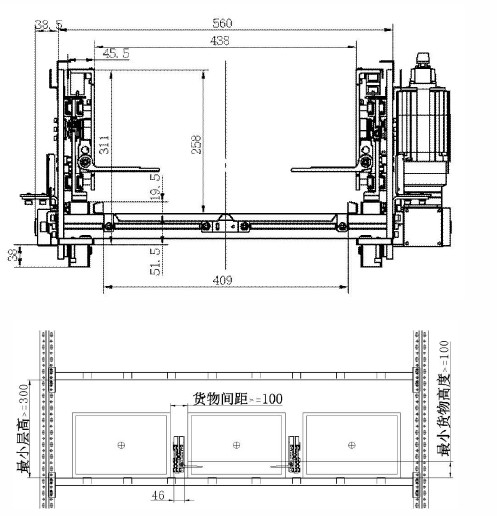

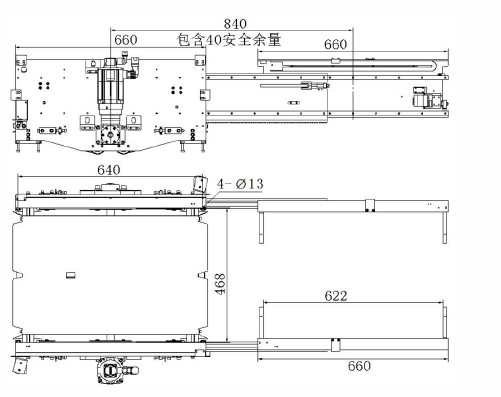

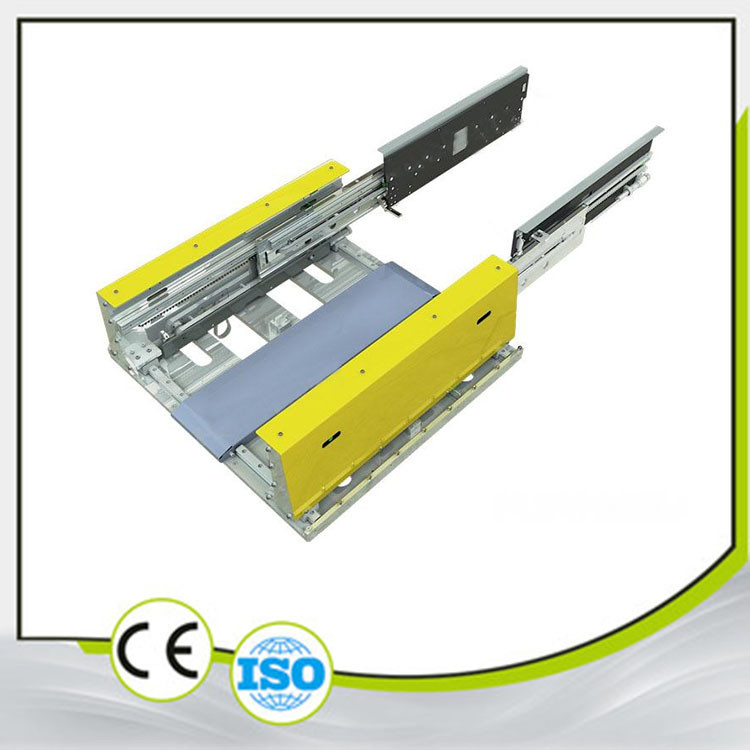

Electric Pallet Telescopic Fork Box type single cargo telescopic clamping fork, can be customized
Used for vertical warehouse turnover box,
enhanced model, reduced load deflection, stronger,
can be combined and optimized according to different application scenarios.
The running speed and load disturbance are related to the load and maximum extension of the fork
| Maximum load | 0~100kg |
|---|---|
| The maximum length | 200-1500mm |
| Running speed | 40/60m/min |
| Load disturbance | 5-18mm |
| Fork positioning accuracy | ±2mm |
| Fork operation synchronization error | ＜5mm |
| Repeat positioning accuracy | ±3mm |
| Height difference of fork upper surface | ≤2mm |
| Drive mode | motor driven |
| Scope of application | Box storage and retrieval |
