Name: Customization Electric Pallet Telescopic Fork Max. 5000Kg Load Capacity
Brand: Guangzhou Tianyue Automation Technology Co., Ltd.
SKU: TY-FB-HCJ5000
Availability: InStock

Home > products > Electric Pallet Telescopic Fork >

Customization Electric Pallet Telescopic Fork Max. 5000Kg Load Capacity

Customization Telescopic Fork

Customization electric pallet fork

Telescopic Fork 5000Kg Load

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TY-FB-HCJ5000

Document:

Product Brochure PDF

Request A Quote

Customization Electric Pallet Telescopic Fork Max. 5000Kg Load Capacity

Product Details

Highlight:

Customization Telescopic Fork

Customization electric pallet fork

Telescopic Fork 5000Kg Load

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

wooden box

Delivery Time

45 work days

Payment Terms

T/T

Supply Ability

100

Alloy Steel Electric Pallet Fork Box Type Single Cargo Telescopic Forks Customized

Get Best Price

Customization Electric Pallet Telescopic Fork Max. 5000Kg Load Capacity

Get Best Price

Electric Pallet Telescopic Fork Coil Material Double Arm 1000KG-4000KG Load

Get Best Price

13570415240

mkliangjintian@gmail.com

Contact Now

Product Description

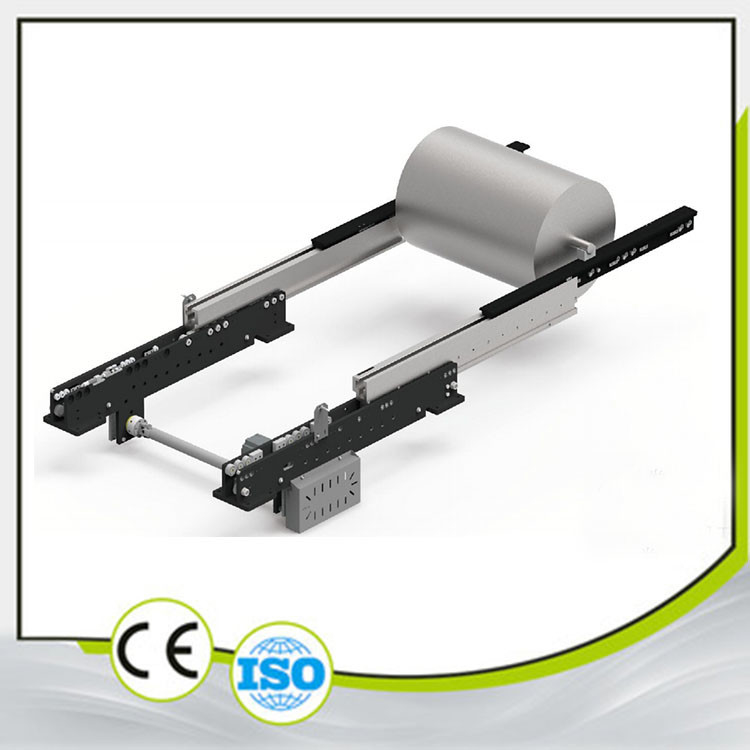

Electric Pallet Telescopic Fork

Technical Parameters

Parameter	Details
Loading Area	90x220 mm
Load Capacity	Max. 5000 kg
Length	Max. 2000 mm
Speed	Loaded 45 m/min, Unloaded 90 m/min
Acceleration	Loaded 0.5 m/s², Unloaded 3.0 m/s²
Positioning Accuracy	±3 mm

Technical Features

Material: Made from special high-quality alloy steel, effectively reducing section size and overall weight, with higher load capacity and longer service life.
Design: Optimized section design with less deflection.
Transmission: Uses a combination of helical gears and high-strength chains for transmission, achieving positioning accuracy of ±3 mm.
Lubrication: Optional automatic lubrication device.
Environmental Adaptability: Suitable for cold storage or high-temperature environments.
Customization: Customizable for higher load capacity or smaller sections.

Description

Used for handling and storage of coil materials and similar goods.
Narrower fork section to meet the needs of side access for such goods.

Tags：

telescopic fork

electric pallet fork

telescopic forks

Box type electric pallet fork single cargo telescopic clamping fork customizable

Get Best Price

Video

Alloy Steel Electric Pallet Fork Box Type Single Cargo Telescopic Forks Customized

Get Best Price

Customization Electric Pallet Telescopic Fork Max. 5000Kg Load Capacity

Get Best Price

Electric Pallet Telescopic Fork Coil Material Double Arm 1000KG-4000KG Load

Get Best Price

Send your inquiry directly to us
