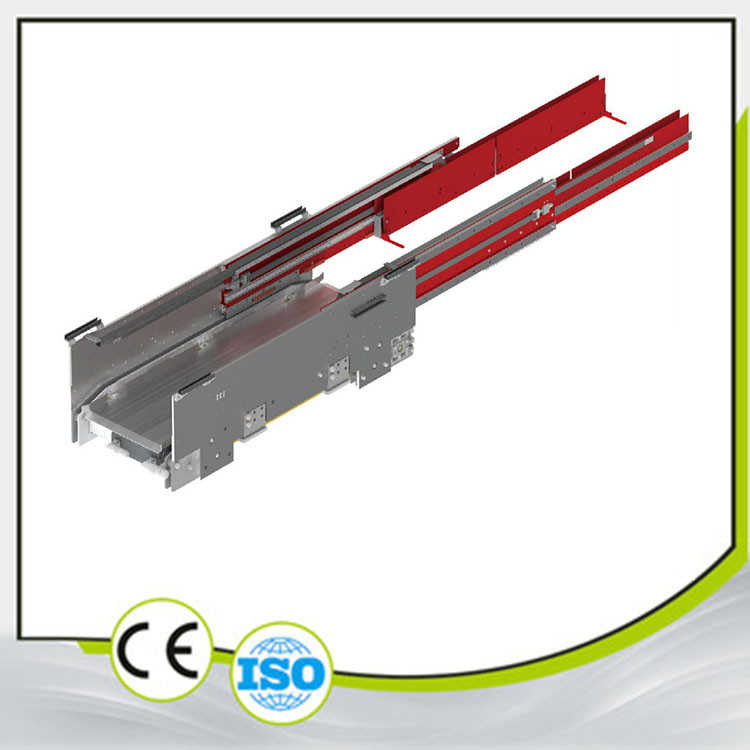

Name: Alloy Steel Electric Pallet Fork Box Type Single Cargo Telescopic Forks Customized
Brand: Guangzhou Tianyue Automation Technology Co., Ltd.
SKU: TY-FB-BJ100
Availability: InStock

Home > products > Electric Pallet Telescopic Fork >

Alloy Steel Electric Pallet Fork Box Type Single Cargo Telescopic Forks Customized

telescopic forks customized

Alloy Steel Electric pallet fork

Electric pallet fork box type

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TY-FB-BJ100

Document:

Product Brochure PDF

Request A Quote

Product Details

Motor:

Servo Motor 24/48V

Telescopic Stroke:

Customization

Full Load Speed:

1.5 M/s²

Unloaded:

2 M/s²

Load Weight:

＜100KG

Highlight:

telescopic forks customized

Alloy Steel Electric pallet fork

Electric pallet fork box type

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

wooden box

Delivery Time

50 work days

Payment Terms

T/T, T/T

Supply Ability

100

Alloy Steel Electric Pallet Fork Box Type Single Cargo Telescopic Forks Customized

Get Best Price

Customization Electric Pallet Telescopic Fork Max. 5000Kg Load Capacity

Get Best Price

Electric Pallet Telescopic Fork Coil Material Double Arm 1000KG-4000KG Load

Get Best Price

13570415240

mkliangjintian@gmail.com

Contact Now

Product Description

Electric pallet telescopic fork, box-type single cargo telescopic fork, load <100KG can be customized

Technical Parameters

Parameter	Details
Loading Area	56x185 mm
Load Capacity	< 100 kg
Length	500-1200 mm
Speed	Loaded 90 m/min, Unloaded 120 m/min
Acceleration	Loaded 1.5 m/s², Unloaded 2 m/s²
Positioning Accuracy	±2 mm

Technical Features

Fork adopts servo drive mode, with positioning accuracy up to ±2mm;
Loading uses DC motor control, ensuring smoother operation;
Simple structure with redundant floor-mounted system drive, compact size, lower noise, and longer service life;
Supports non-standard customization.

Description

Used for tote bin push-pull storage;
Mainly used on light stackers, paired with beam racks for pushing and pulling tote bins;
Compared to conventional forks, it reduces the cost of racks.
