Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-ZZJL-MJ1500
Document:
Video
Video
Video
Video

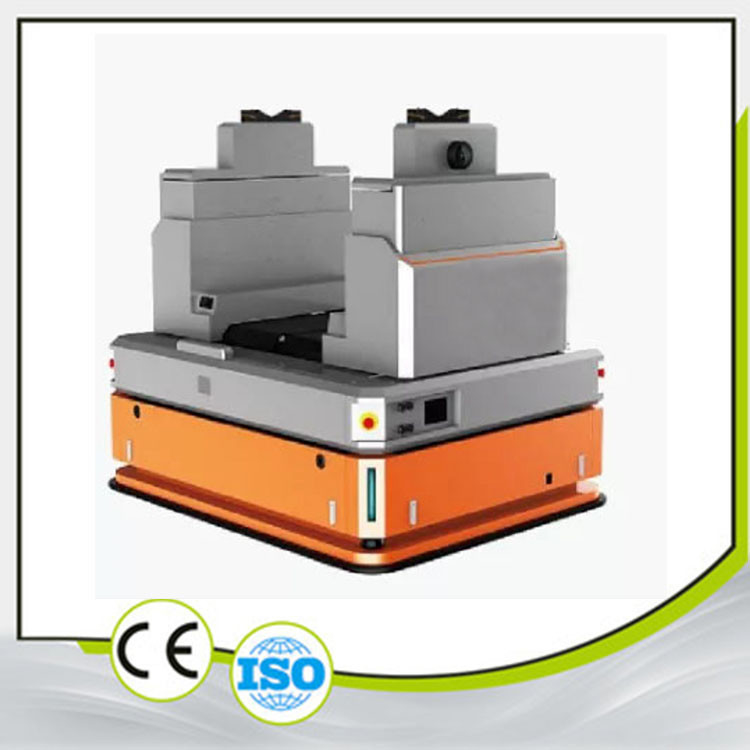

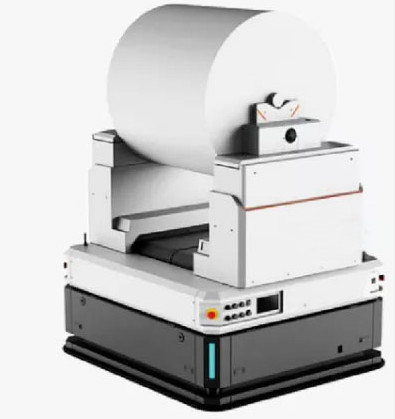

AGV Automated Guided Vehicle Precise docking of heavy-duty coil materials, dual or four steering wheels, load 1T-10T
Technical Parameters
| Item | Technical Parameters |
|---|---|
| Product Name | Omnidirectional Coil Material Docking Lift Platform AGV |
| Product Dimensions | L x W x H mm (Customizable) |
| Loading Mode | High-precision docking lift, coil material docking transport |
| Load Capacity | 1500KG (Customizable) |
| Control Mode | PLC, Microcontroller (Customizable) |
| Guidance Mode | Laser, QR Code, Magnetic Strip (Customizable) |
| Travel Directions | Forward, Backward, Left Turn, Right Turn, Branching, 360° Rotation, Lateral, Transverse, Omnidirectional |
| Drive Mode | Mecanum Wheel Drive |
| Drive Steering Power | 1000W * 4 |
| Drive Power Supply | DC 48V |
| Travel Speed | Straight: 0-40 m/min, Turn: 0-20 m/min |
| Repeat Positioning Accuracy | ±5mm |
| Allowed Ground Flatness | ≤5 mm |
| Operating Mode | Continuous operation for 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online charging (Side charging) |
| Obstacle Sensor Safety Range | Detection distance: ≤3 m (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20 mm |
| Safety Protection | Front obstacle detection sensor, dual safety edge collision prevention mechanism, emergency stop switch |
| Alarm Mode | Audible and visual alarm, tri-color light, music horn |
| Working Noise | Below 70 dB (A) |
| Battery | Type: Lithium Iron Phosphate, Voltage: 48V, Capacity: 150Ah (Customizable) as required |
| Design Life | >10 years |
Video
Video
Video
Video
Video
Video
Send your inquiry directly to us
