Name: Load 1T Combined Single Lift Backpack Industrial AGV Trolley Customization
Brand: Guangzhou Tianyue Automation Technology Co., Ltd.
SKU: TY-FB-HZD-1
Availability: InStock

Home > Products > AGV Automated Guided Vehicle >

Load 1T Combined Single Lift Backpack Industrial AGV Trolley Customization

1T AGV Trolley

1T Industrial AGV

Customization AGV Trolley

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TY-FB-HZD-1

Document:

Product Brochure PDF

Request A Quote

Product Details

Motor Way:

Servo Motor

Drive Mode:

Dual Steering Wheel Drive

Docking Mod:

Back Lift

Size:

Customization

Power Supply:

Lithium Iron Phosphate

Load Weight:

1000KG

Highlight:

1T AGV Trolley

1T Industrial AGV

Customization AGV Trolley

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

wooden box

Delivery Time

65 wrok days

Payment Terms

T/T

Supply Ability

100

SMT Type AGV with 50kg Load Capacity Mecanum Wheel Drive and Laser Guidance for PCB Material Transport

Get Best Price

AGV Automated Guided Vehicle with Polyurethane Tyre Material and 1500 Kg Load Capacity for Precise ±10mm Parking Accuracy

Get Best Price

AGV Automated Guided Vehicle with 400 Kg Load Capacity 942Mm Rotational Diameter and Two-Wheel Differential Drive for Warehouse Automation

Get Best Price

Customized AGV Automated Guided Vehicle with Electromagnetic Brake System and Laser Guidance Navigation

Get Best Price

13570415240

mkliangjintian@gmail.com

Contact Now

Product Description

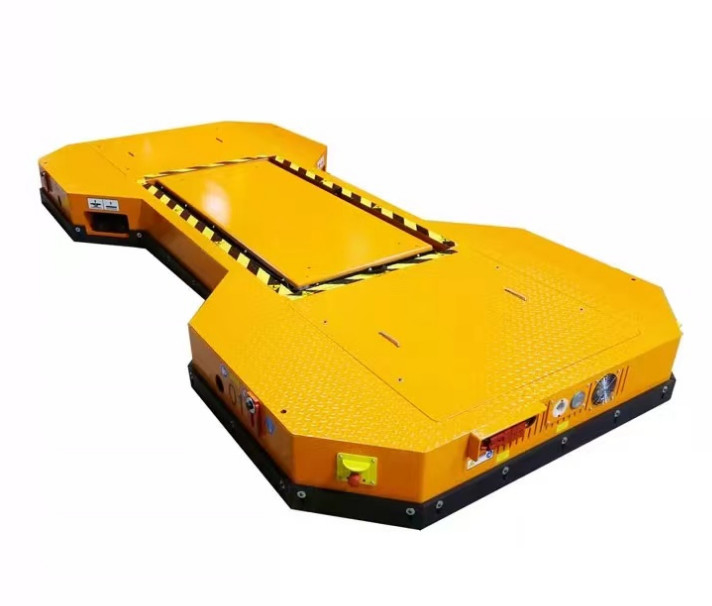

Load 1T Combined Single Lift Backpack Industrial AGV Trolley

Automated Guided Vehicle featuring combined single-lift backpack design with docking adjustment XY slide, capable of handling 1000kg loads with customizable configurations.

Load 1T Combined Single Lift Backpack Industrial AGV Trolley Customization 0

Technical Specifications

Project	Technical Parameters
Product Name	Single Lifting and Loading AGV
Product Dimensions	L x W x H mm (Customizable)
Loading Mode	Single Lifting Platform, X ±120mm, Y ±50mm, Rotation ±2°
Load Capacity	1000 KG (Customizable)
Control Mode	PLC, Single Chip (Customizable)
Guidance Mode	Laser, QR Code, Magnetic Strip (Customizable)
Travel Directions	Forward, Reverse, Left Turn, Right Turn, Fork, 360° Rotation, Translation, Horizontal Movement, Omnidirectional
Drive Mode	Dual-Steering Wheel Drive
Drive Power Supply	DC 48V
Travel Speed	Linear: 0-40 m/min, Turning: 0-20 m/min
Repeat Positioning Accuracy	±5mm
Allowable Road Surface Flatness	≤5 mm
Operation Mode	Continuous 24-Hour Operation
Climbing Ability	≤5%
Charging Mode	Online Charging (Side Charging)
Obstacle Sensor Safety Sensing Range	Detection Distance: ≤3 m (Adjustable), Sensor Detection Angle: ≤270° (Adjustable), Emergency Braking Distance: < 20 mm
Safety Protection	Front Obstacle Detection Sensor, Dual Protection Safety Bumper, Emergency Stop Switch
Alarm Form	Audible and Visual Alarm, Three-color Lamp, Music Horn
Working Noise	Below 70 dB (A)
Battery	Type: Lithium Iron Phosphate Battery, Voltage: 48V, Capacity: 210Ah
Design Life	>10 Years

Key Features

High-precision positioning with ±5mm accuracy
Omnidirectional movement capabilities
Advanced safety systems with multiple protection layers
24/7 continuous operation capability
Customizable guidance and control systems
Efficient lithium iron phosphate battery system
