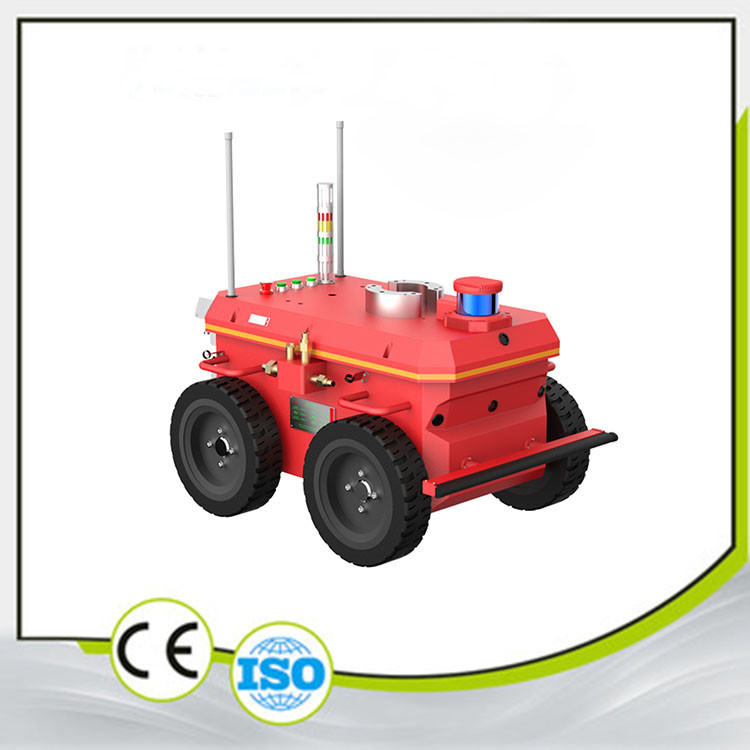

Load 80KG Four Wheel Off Road UGV Chassis Equipped With Inspection Equipment

Load 80KG Four Wheel Off Road UGV Chassis Equipped With Inspection Equipment

Load 80KG UGV Chassis

80KG four wheel drive chassis

Off Road UGV Chassis

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TY-UGV-XJ

Document:

Product Brochure PDF

Contact Us
Request A Quote
Load 80KG Four Wheel Off Road UGV Chassis Equipped With Inspection Equipment Load 80KG Four Wheel Off Road UGV Chassis Equipped With Inspection Equipment Load 80KG Four Wheel Off Road UGV Chassis Equipped With Inspection Equipment
Product Details
Drive Mode:
Servo Motor
Voltage:
36V
Series Type:
Differential Drive
Load Weight:
80kg
Application:
Outdoor Inspection
Highlight:

Load 80KG UGV Chassis

,

80KG four wheel drive chassis

,

Off Road UGV Chassis

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden box
Delivery Time
45 work days
Payment Terms
T/T, T/T
Supply Ability
100
RELATED PRODUCTS
Good price New Energy Vehicle EV Charging Robot With 60Degree Rechargeable Battery online Video

New Energy Vehicle EV Charging Robot With 60Degree Rechargeable Battery

Get Best Price
Good price Multifunctional Tank Chain Driven UGV Chassis For Outdoor Obstacle Crossing online Video

Multifunctional Tank Chain Driven UGV Chassis For Outdoor Obstacle Crossing

Get Best Price
Good price 48V UGV Wire-Controlled Four Wheel Drive Chassis Load 500kg IP44 Protection online Video

48V UGV Wire-Controlled Four Wheel Drive Chassis Load 500kg IP44 Protection

Get Best Price
Good price Wire Controlled Four Wheel UGV Chassis Load 1000KG For Outdoors Over Obstacles online Video

Wire Controlled Four Wheel UGV Chassis Load 1000KG For Outdoors Over Obstacles

Get Best Price
Contact Us
13570415240
mkliangjintian@gmail.com
Contact Now
Product Description

The four-wheel off-road chassis is equipped with inspection equipment, and the load weight is 80KG. It can be customized



Parameter Value
Design Dimensions 1178762900mm
Vehicle Weight 270kg
Structure Type Four-wheel differential
Main Chassis Material Q235
Ground Clearance 135mm
Wheelbase 580mm
Track Width 662mm
Tire Diameter 400mm
Drive Motor 1000W*4, DC servo motor
Battery 36V/60AH
Charging Time 3-4 hours
Charging Method 36V/18A manual - 36V/6A wireless charging
Operating Temperature -20°C-60°C
Braking Method Motor braking
Parking Method Motor parking
Communication Method CAN 2.0B
Kinematic Analysis √
Remote Control Distance 50m
Running Speed 4.5km/h
Endurance Mileage 15km
Wading Depth 140mm
Maximum Climbing Angle 15°
Obstacle Height Full load 80mm
Protection Level IP65

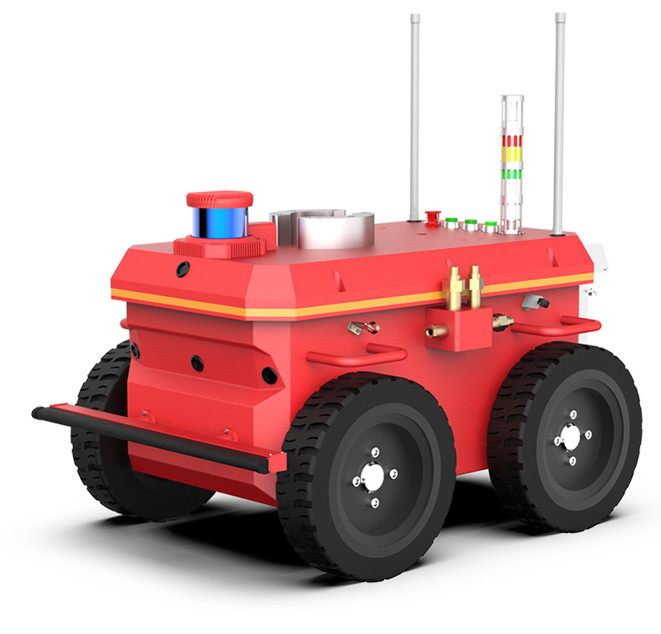

Load 80KG Four Wheel Off Road UGV Chassis Equipped With Inspection Equipment 0

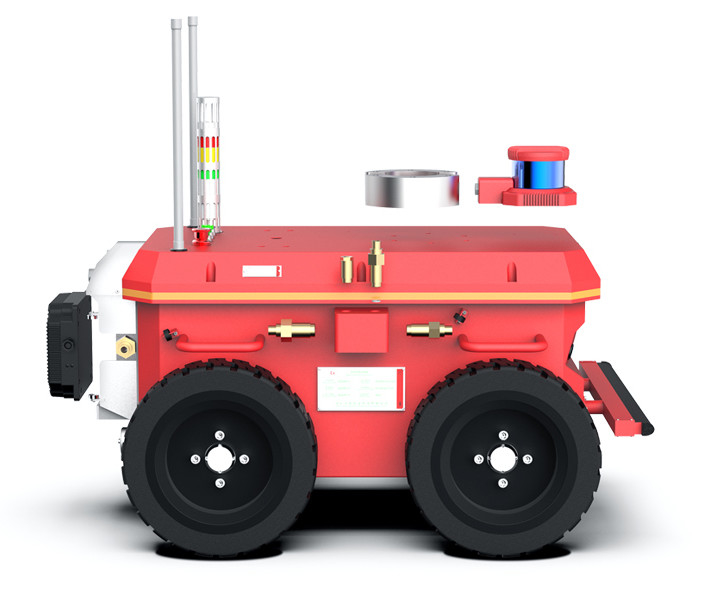

Load 80KG Four Wheel Off Road UGV Chassis Equipped With Inspection Equipment 1
