High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility

High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility

High-Strength Metal Alloy UGV Chassis

875*675*517mm Unmanned Ground Vehicle Chassis

48V Voltage Four-Wheel Outdoor Chassis

Brand Name:

TIAN YUE

Certification:

3c.ce

Document:

Product Brochure PDF

Contact Us
Request A Quote
High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility
Product Details
Chassis Material:
High-Strength Metal Alloy
Chassis Type:
Outdoor
Size:
875*675*517mm
Voltage:
48V
Speed:
0m/s~1.6m/s
Operating Time:
2-3 Hours Per Charge
Application:
Unmanned Ground Vehicle (UGV) Development, Robotics Research, Outdoor Exploration
Obstacle Clearance Height:
0mm~60mm
Highlight:

High-Strength Metal Alloy UGV Chassis

,

875*675*517mm Unmanned Ground Vehicle Chassis

,

48V Voltage Four-Wheel Outdoor Chassis

Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
Negotiable
Packaging Details
Wooden Box
Delivery Time
40 Working Days
Payment Terms
L/C,T/T
Supply Ability
10 Sets/month
RELATED PRODUCTS
Good price 360° Panoramic Dead-Corner-Free Automatic Patrol Voice-Interactive Security Robot online

360° Panoramic Dead-Corner-Free Automatic Patrol Voice-Interactive Security Robot

Get Best Price
Good price High-Strength Metal Alloy UGV Chassis with 1.6m/s Maximum Speed and -19° to 55° Operating Range for Outdoor Autonomous Mobility online

High-Strength Metal Alloy UGV Chassis with 1.6m/s Maximum Speed and -19° to 55° Operating Range for Outdoor Autonomous Mobility

Get Best Price
Good price UGV Outdoor Off Road 4 Wheel Drive Robot Chassis 48V Servo Motor Drive online Video

UGV Outdoor Off Road 4 Wheel Drive Robot Chassis 48V Servo Motor Drive

Get Best Price
Good price New Energy Vehicle EV Charging Robot With 60Degree Rechargeable Battery online Video

New Energy Vehicle EV Charging Robot With 60Degree Rechargeable Battery

Get Best Price
CONTACT US
13570415240
mkliangjintian@gmail.com
Contact Now
Product Description
UGV Wire-Controlled Four-Wheel Outdoor Chassis

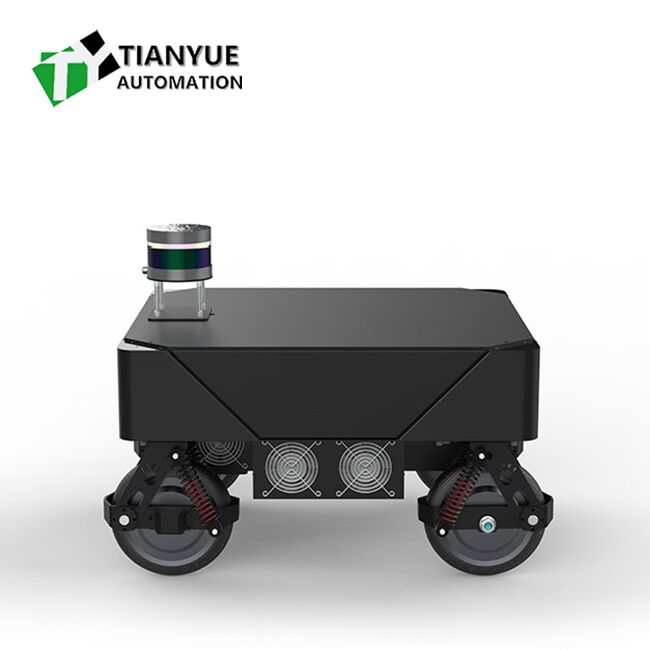

High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility 0
Product Overview
The UGV Wire-Controlled Four-Wheel Outdoor Chassis is a robust and versatile platform designed for various outdoor applications, combining durability, functionality, and advanced technology compatibility. Crafted from high-strength metal alloy, this chassis ensures exceptional structural integrity and long-lasting performance in demanding environments.
Key Features
  • Product Name: UGV Wire-Controlled Four-Wheel Outdoor Chassis
  • Obstacle Clearance Height: 0mm to 60mm for various terrains
  • Operating Voltage: 48V for stable and efficient performance
  • Custom Made: Available on demand to meet specific requirements
  • Battery Options: Rechargeable Lithium Battery (optional) for long-lasting use
  • Speed Range: 0m/s to 1.6m/s, adjustable for different operational needs
  • Automatic Recharge capability for continuous operation
  • One-click Call feature for quick and easy control
  • Fault Self-Check system for automatic issue detection and reporting

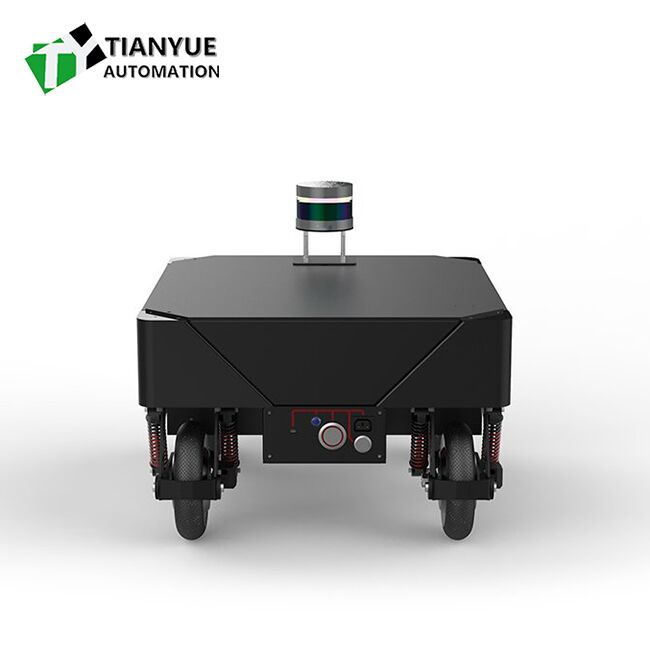

High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility 1
Technical Specifications
Size 875*675*517mm
Chassis Load Capacity 50kg
Drive Mode Servo Motor
Climbing Angle 0°~15°
Number Of Wheels 4
Speed 0m/s~1.6m/s
Custom Made On Demand
Battery Rechargeable Lithium Battery (optional)
Obstacle Clearance Height 0mm~60mm
Application Unmanned Ground Vehicle (UGV) Development, Robotics Research, Outdoor Exploration
Features Intelligent Detection, Patrol Report, Temperature and Humidity Monitoring

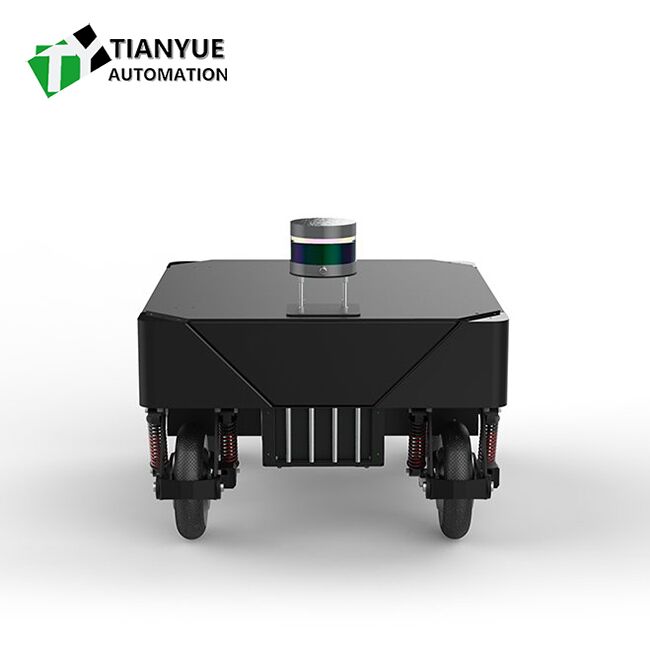

High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility 2
Applications
This versatile chassis platform is ideal for autonomous map building, facial recognition-enabled security patrols, and outdoor patrol photography. With independent steering for each wheel and efficient servo motors, it provides precise maneuverability essential for creating accurate 3D maps and conducting surveillance operations in outdoor environments.
The chassis supports advanced technological integrations including panoramic monitoring systems, intelligent detection technologies, and license plate recognition capabilities. Its sturdy construction and 2-3 hours operating time per charge make it suitable for extended field operations in security, research, and industrial applications.
High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility 3
High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility 4 High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility 5 High-Strength Metal Alloy UGV Chassis 875*675*517mm with 48V Voltage for Outdoor Robotics and Smart Mobility 6
