Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-FB-JSM-1500
Document:
Video
Video
Video
Video
| Item | Technical Parameters |
|---|---|

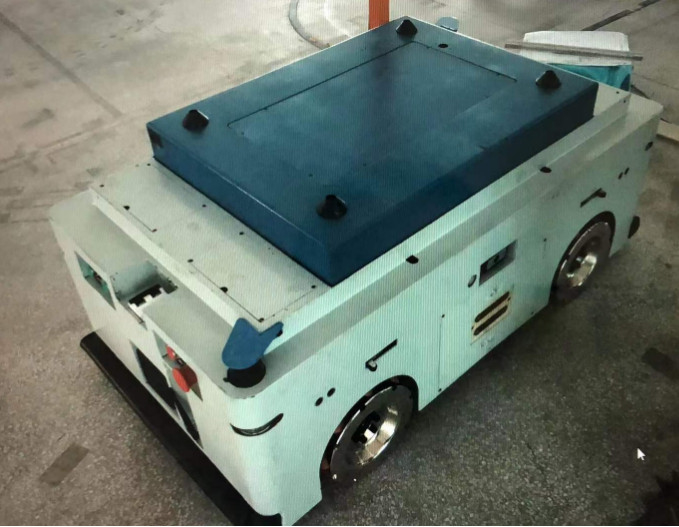

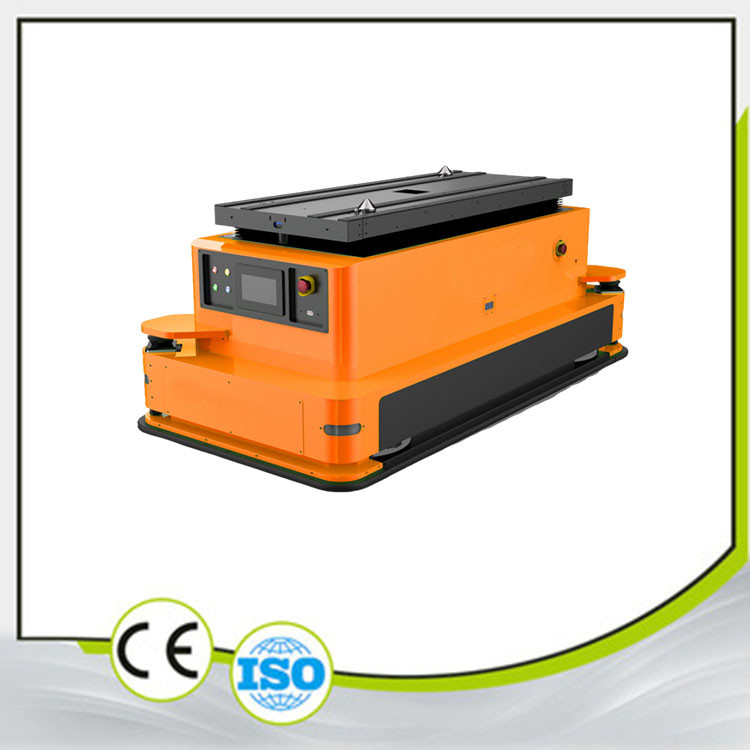

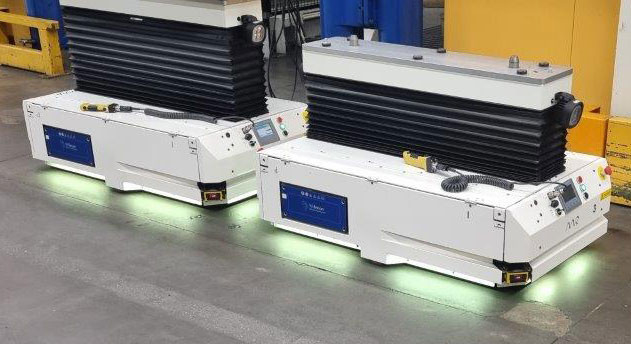

| Product Name | Mecanum Wheel Omni-directional Lifting AGV |
| Product Dimensions | Length x Width x Height mm (customizable) |
| Loading Mode | Lift and dock, lifting height 1 meter (customizable) |
| Rated Load | 1500kg (customizable) |
| Lifting Mechanism | Electric rigid chain or electric hydraulic (customizable) |
| Control Mode | PLC, microcontroller (customizable) |
| Navigation Mode | Laser, QR code, magnetic tape (customizable) |
| Driving Directions | Forward, backward, left turn, right turn, divergence, 360° rotation, lateral, transverse |
| Drive Mode | Mecanum wheel drive |
| Drive Power | 750W * 4 |
| Drive Power Supply | DC 48V |
| Travel Speed | Straight: 0-40 meters/minute, Turning: 0-20 meters/minute |
| Repeat Positioning Accuracy | ±5mm |
| Allowed Floor Flatness | ≤5mm |
| Operating Mode | Can operate continuously for 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online charging (side charging) |
| Obstacle Sensor Safety Range | Detection distance: ≤3 meters (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20mm |
| Safety Protection | Front obstacle detection sensor, dual protection safety edge anti-collision mechanism, emergency stop switch |
| Alarm Mode | Audible and visual alarm, tri-color light, musical horn |
| Applicable Industries | Assembly manufacturing |
| Battery | Type: Lithium iron phosphate battery, Voltage: 48V, Capacity: 100Ah |
| Design Life | >10 years |
