Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-UGV-S01
Document:

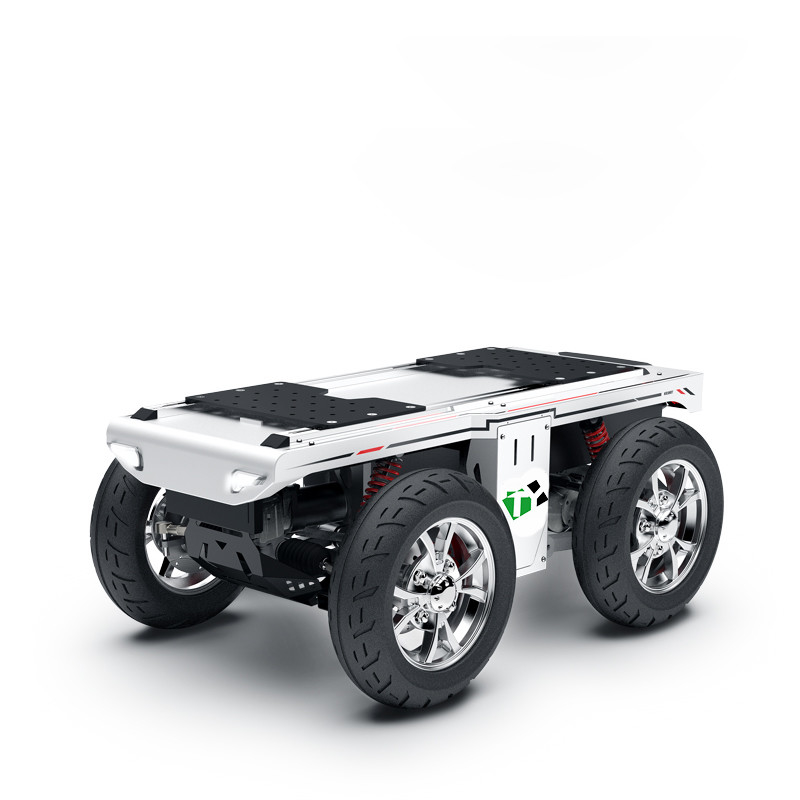

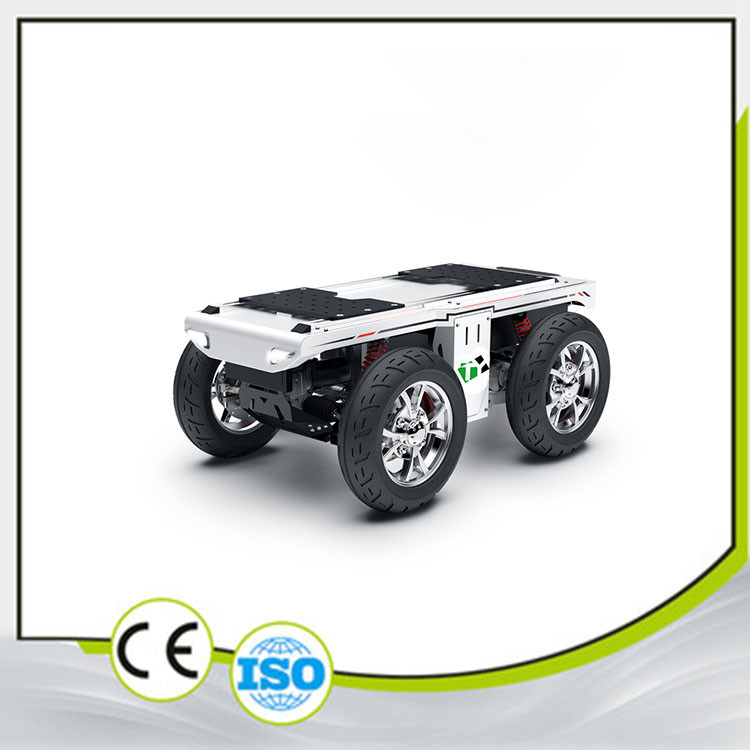

UGV Wire-Controlled Four-Wheel Outdoor Shassis Load 500kg, can be used outdoors
| Item | Specification |
|---|---|
| Dimensions and Weight | |
| Size | 1600 mm (L) x 820 mm (W) x 520 mm (H) |
| Chassis Mass | 176 kg |
| Structural Characteristics | |
| Drive Configuration | Front to rear wheel drive, Ackermann steering |
| Suspension | Integral bridge suspension |
| Ground Clearance | 120 mm |
| Wheelbase | 850 mm |
| Wheel Track (Base) | 645 mm |
| Tire Diameter | 420 mm |
| Power and Performance | |
| Drive Motor | 1500W DC brushless motor |
| Battery | 48V/40AH |
| Charging Time | Approximately 4 hours with 48V/10A manual charger |
| External Power Supply | 48V/20A, 24V/15A, 12V/15A |
| Braking | Hydraulic disc brake + motor brake |
| Parking | Electromagnetic brake |
| Load and Speed | |
| Vertical Load Capacity | 300 kg |
| Operating Speed | 0-18 km/h |
| Range | Up to 40 km |
| Terrain and Obstacle Capability | |
| Wading Depth | 100 mm |
| Maximum Climbing Angle | 30° under full load |
| Obstacle Crossing Width (Empty) | 230 mm |
| Obstacle Crossing Height (Empty) | 90 mm |
| Protection and Communication | |
| Protection Level | IP44 |
| Communication Protocol | CAN |
