Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-CCJS-1000
Document:
Video
Video
Video
Video

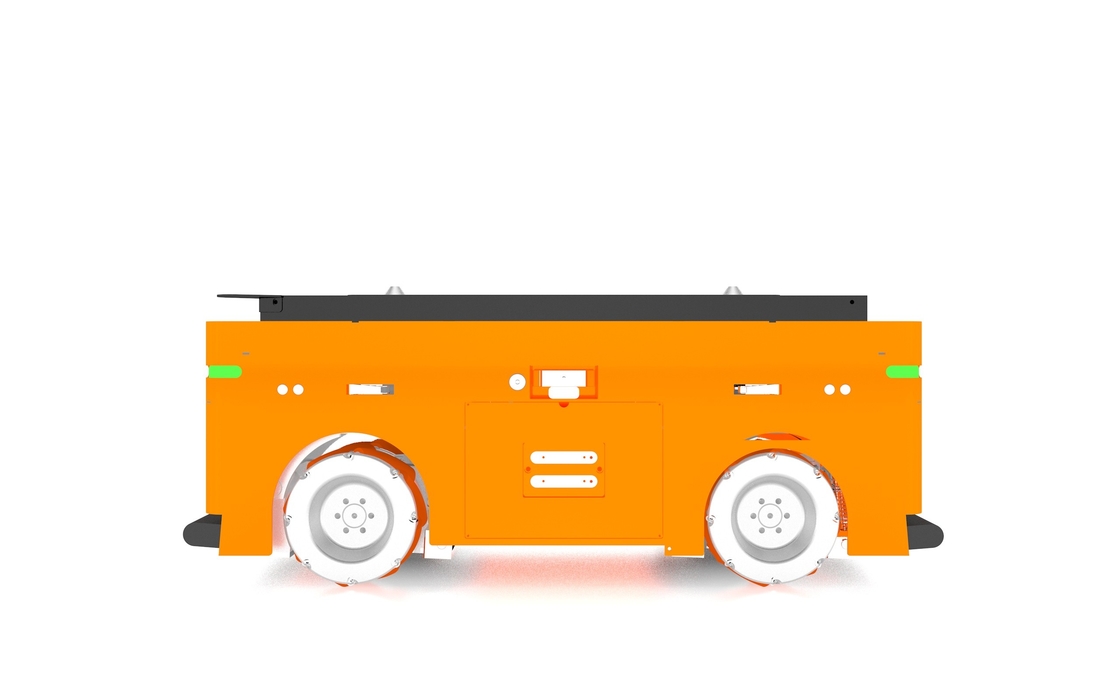

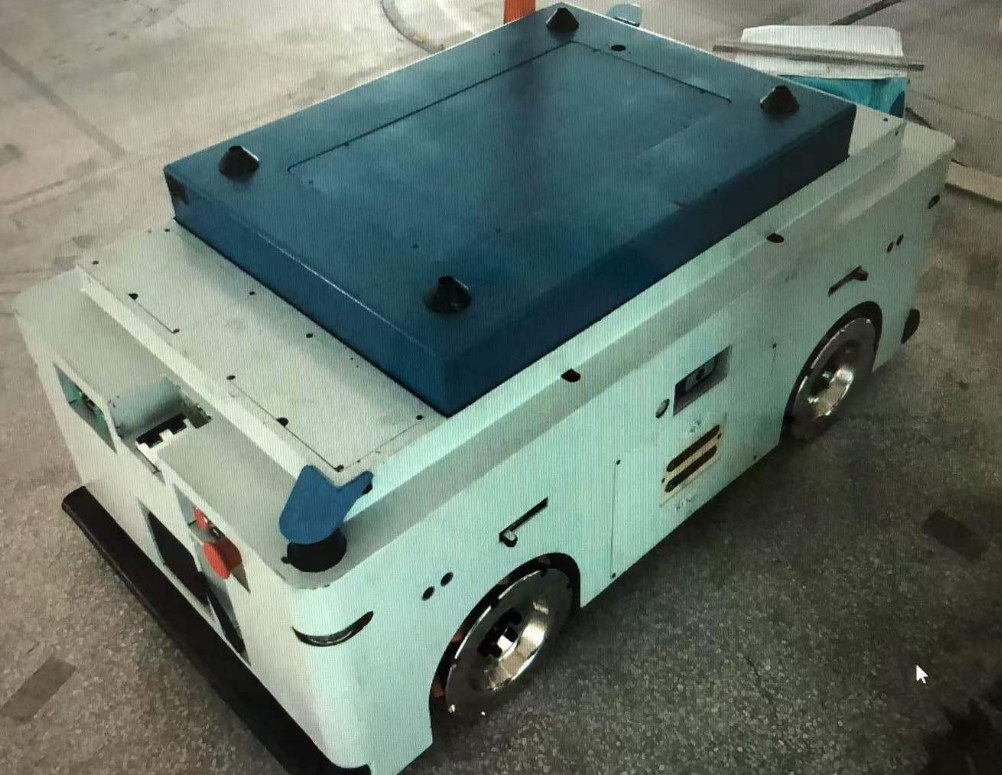

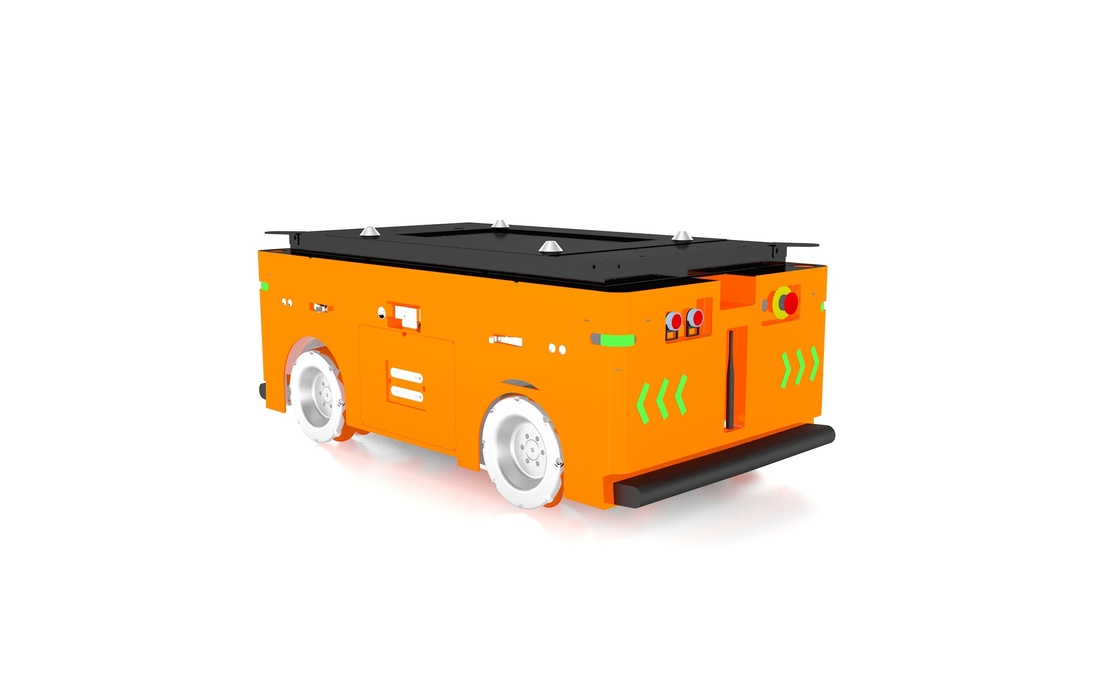

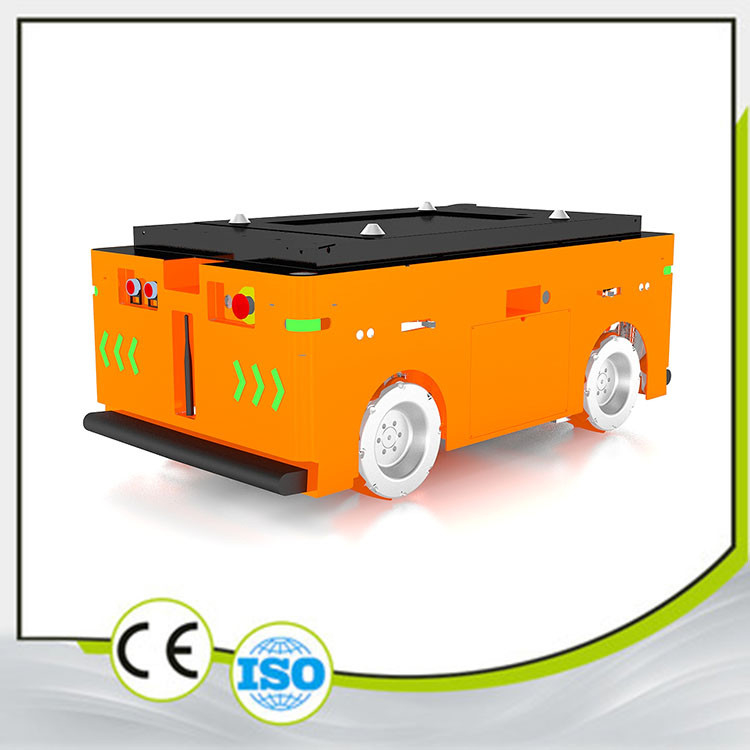

AGV Automated Guided Vehicle Omni-directional submersible jacking storage AGV, jacking load 1000KG
| Item | Technical Specifications |
|---|---|
| Product Name | 1t Lifting Omnidirectional Storage Top-lift AGV |
| Product Dimensions | L x W x H mm (customizable) |
| Loading Mode | Undercarriage top-lift, customizable lift stroke 50-100 mm |
| Load Capacity | 1000 KG - 1500 KG (customizable) |
| Control Mode | PLC, Microcontroller (customizable) |
| Guidance Mode | Laser, QR Code, Magnetic Tape (customizable) |
| Travel Directions | Forward, Backward, Turn Left, Turn Right, Branch, 360° Rotation, Translation, Lateral Movement, Omnidirectional |
| Drive Mode | Mecanum Wheel Drive |
| Drive Power Supply | DC 48V |
| Travel Speed | Linear: 0-40 m/min, Turning: 0-20 m/min |
| Repeat Positioning Accuracy | ±5 mm |
| Allowed Ground Flatness | ≤5 mm |
| Operating Mode | Continuous operation for 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online Charging (side charging) |
| Obstacle Sensor Safety Detection Range | Detection Distance: ≤3 m (adjustable), Sensor Detection Angle: ≤270° (adjustable), Emergency Braking Distance: < 20 mm |
| Safety Protection | Front Obstacle Detection Sensor, Dual Safety Edge Collision Protection Mechanism, Emergency Stop Switch |
| Alarm Mode | Audible and Visual Alarm, Three-color Light, Music Horn |
| Operating Noise | Below 70 dB (A) |
| Battery | Type: Lithium Iron Phosphate Battery, Voltage: 48V, Capacity: 60Ah |
| Design Life | >10 years |
