Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-PT-01
Document:
Video
Video
Video
Video

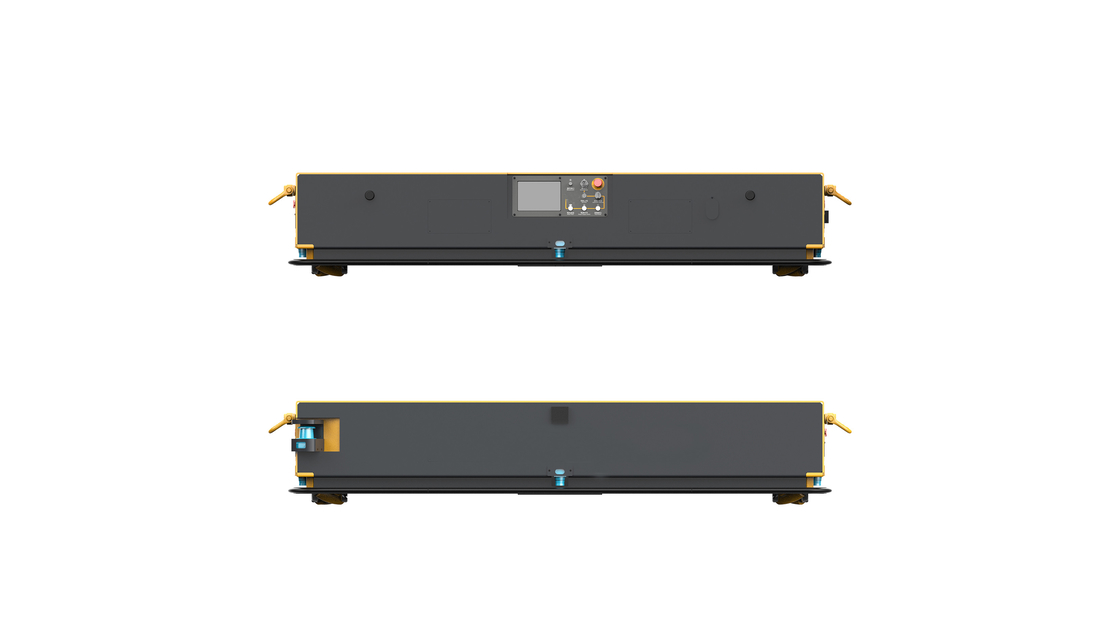

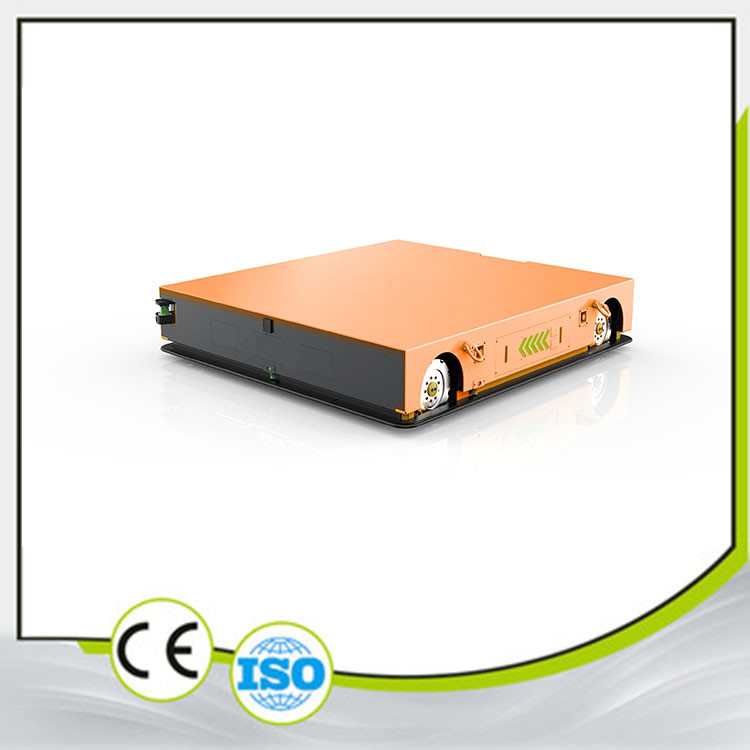

AGV Automated Guided Vehicle Mecanum wheel omnidirectional platform AGV, load 1000-5000KG, customized
| Parameter | Details |
|---|---|
| Product Name | Mecanum Wheel All-Directional Platform AGV |
| Product Dimensions | Length × Width × Height (customizable according to customer requirements) |
| Loading Mode | Precise docking lifting, lifting stroke customizable up to 50mm for rolls |
| Load Capacity | 1000KG-5000KG (customizable according to requirements) |
| Control Mode | PLC, microcontroller (customizable according to requirements) |
| Guidance Mode | Laser, QR code, magnetic stripe (customizable according to requirements) |
| Travel Directions | Forward, backward, left turn, right turn, fork, 360° rotation, lateral movement, translation, omnidirectional |
| Drive Mode | Mecanum wheel drive |
| Drive Power | DC 48V |
| Travel Speed | Linear: 0-40 m/min, Turning: 0-20 m/min |
| Repeat Positioning Accuracy | ±5mm |
| Allowable Road Surface Flatness | ≤5 mm |
| Operating Mode | Continuous operation for 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online charging (side charging) |
| Obstacle Sensor Safety Range | Detection distance: ≤3 m (adjustable), sensor detection angle: ≤270° (adjustable), emergency braking distance: < 20 mm |
| Safety Protection | Front obstacle detection sensor, double protection safety touch edge collision prevention mechanism, emergency stop switch |
| Alarm Form | Audible and visual alarm, tri-color light, horn |
| Operating Noise | Less than 70 dB (A) |
| Battery | Type: Lithium Iron Phosphate Battery, Voltage: 48V, Capacity: customizable |
| Design Life |
>10 years
|
