Front Fork Lifting AGV Automated Guided Vehicle Load 1000KG Lifting Height 1500mm

Front Fork Lifting AGV Automated Guided Vehicle Load 1000KG Lifting Height 1500mm

1000KG AGV Automated Guided Vehicle

1000KG agv carts

Front Fork Lifting agv vehicle

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TY-ZZJL-M-1t

Document:

Product Brochure PDF

Contact Us
Request A Quote
Front Fork Lifting AGV Automated Guided Vehicle Load 1000KG Lifting Height 1500mm
Front Fork Lifting AGV Automated Guided Vehicle Load 1000KG Lifting Height 1500mm Front Fork Lifting AGV Automated Guided Vehicle Load 1000KG Lifting Height 1500mm Front Fork Lifting AGV Automated Guided Vehicle Load 1000KG Lifting Height 1500mm
Product Details
Motor Way:
Servo Motor
Drive Mode:
Mecanum Wheel
Docking Mod:
Lifting Fork Arm
Size:
Customization
Power Supply:
Lithium Iron Phosphate
Load Weight:
1000KG-1500KG
Docking Method:
Lifting Fork Arm
Highlight:

1000KG AGV Automated Guided Vehicle

,

1000KG agv carts

,

Front Fork Lifting agv vehicle

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden box
Delivery Time
45 work days
Payment Terms
T/T
Supply Ability
100
RELATED PRODUCTS
Good price Light Load Conveyor Chassis AGV Automated Guided Carts Carrying 100KG Differential Drive online Video

Light Load Conveyor Chassis AGV Automated Guided Carts Carrying 100KG Differential Drive

Get Best Price
Good price Customized Front Fork AGV Automated Guided Vehicle Capacity 100KG Customized Size online Video

Customized Front Fork AGV Automated Guided Vehicle Capacity 100KG Customized Size

Get Best Price
Good price 300KG AGV Vehicle Double Layer Transmission Of Photovoltaic Materials In Narrow Channels online Video

300KG AGV Vehicle Double Layer Transmission Of Photovoltaic Materials In Narrow Channels

Get Best Price
Good price Dive Traction AGV Automated Guided Vehicle Traction Weight 1000KG Differential Drive online Video

Dive Traction AGV Automated Guided Vehicle Traction Weight 1000KG Differential Drive

Get Best Price
Contact Us
13570415240
mkliangjintian@gmail.com
Contact Now
Product Description

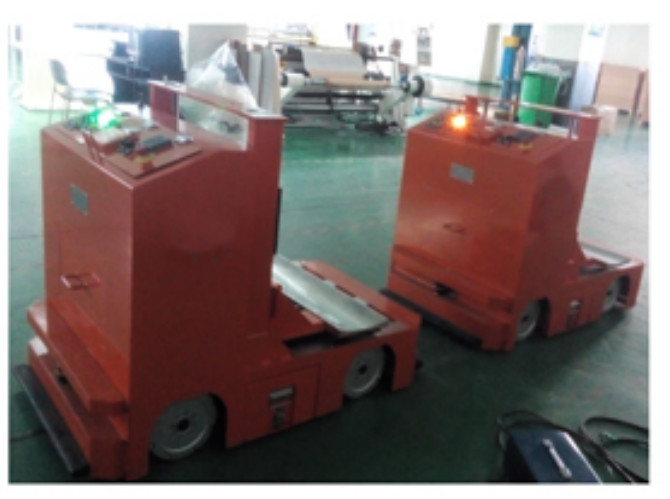

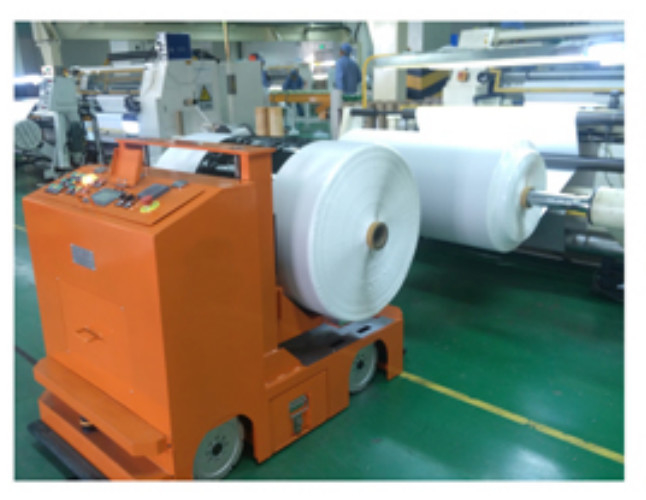

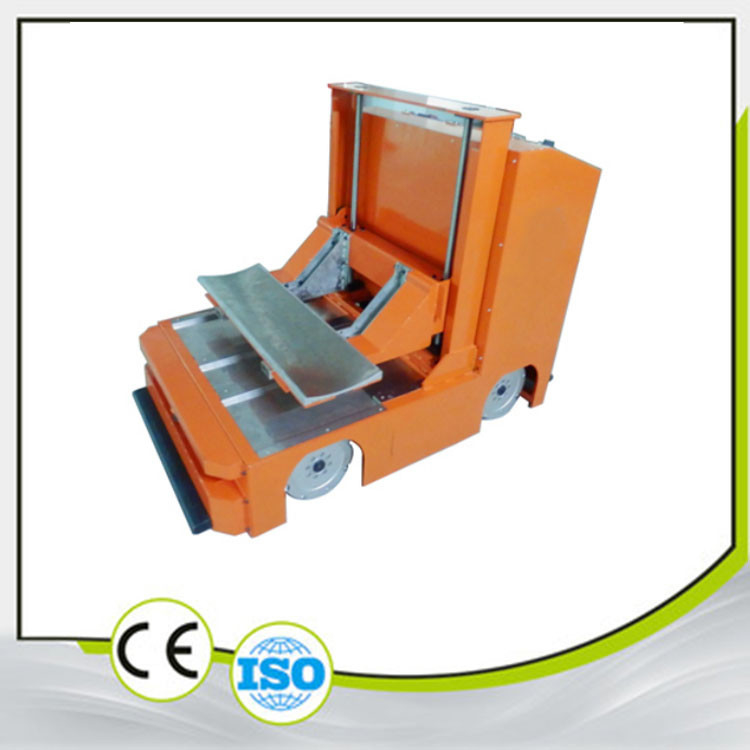

AGV Automated Guided Vehicle Wheat wheel omnidirectional drive, front fork lifting, load 1000KG, lifting height 1500mm



Item Technical Parameters
Product Name Roll-Lifting All-Directional AGV
Product Size L × W × H (Customizable according to customer requirements)
Loading Mode Precision docking lifting, lifting stroke customizable up to 50mm for roll transport
Load Capacity 1000KG-1500KG (Customizable according to requirements)
Control Mode PLC, Microcontroller (Customizable according to requirements)
Guidance Mode Laser, QR Code, Magnetic Stripe (Customizable according to requirements)
Travel Directions Forward, Backward, Left Turn, Right Turn, Fork, 360° Rotation, Lateral, Translation, Omnidirectional
Drive Mode Mecanum Wheel Drive
Drive Power 1000W * 4
Drive Power Supply DC 48V
Travel Speed Linear: 0-40 m/min, Turning: 0-20 m/min
Repeat Positioning Accuracy ±5mm
Allowable Road Surface Flatness ≤5 mm
Operating Mode Continuous operation for 24 hours
Climbing Ability ≤5%
Charging Mode Online charging (side charging)
Obstacle Sensor Safety Range Detection distance: ≤3 m (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20 mm
Safety Protection Front obstacle detection sensor, Dual-protection safety touch edge collision prevention mechanism, Emergency stop switch
Alarm Form Audible and visual alarm, Three-color light, Horn
Operating Noise Less than 70 dB (A)
Battery Type: Lithium Iron Phosphate Battery, Voltage: 48V, Capacity: 200Ah
Design Life >10 years
