Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-CC-CS-1000
Document:
Video
Video
Video
Video

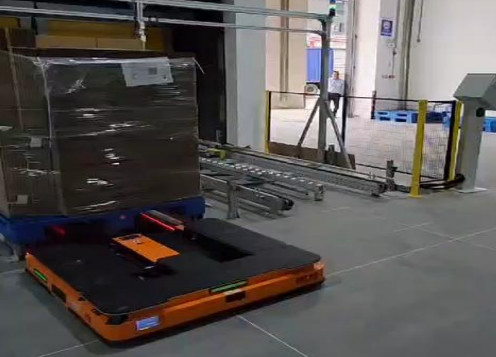

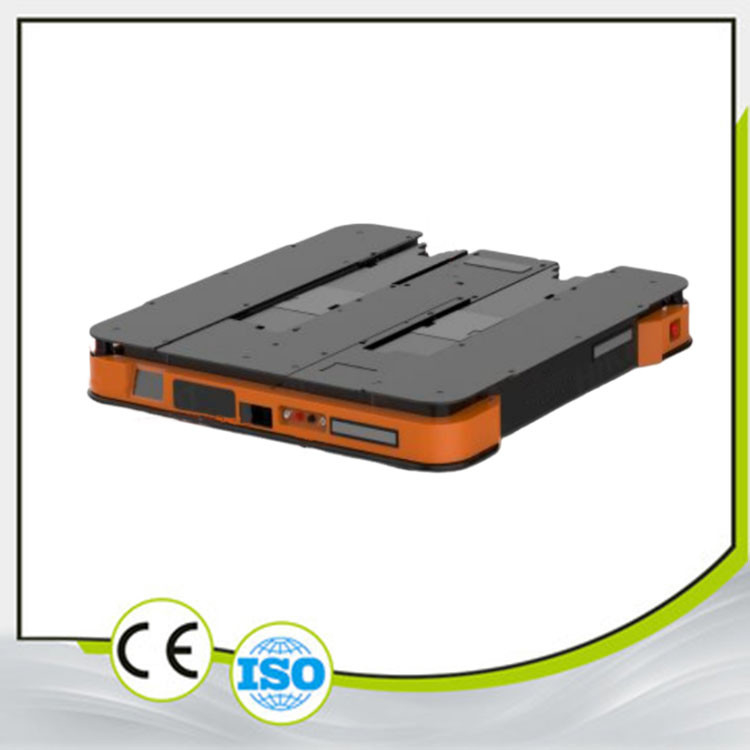

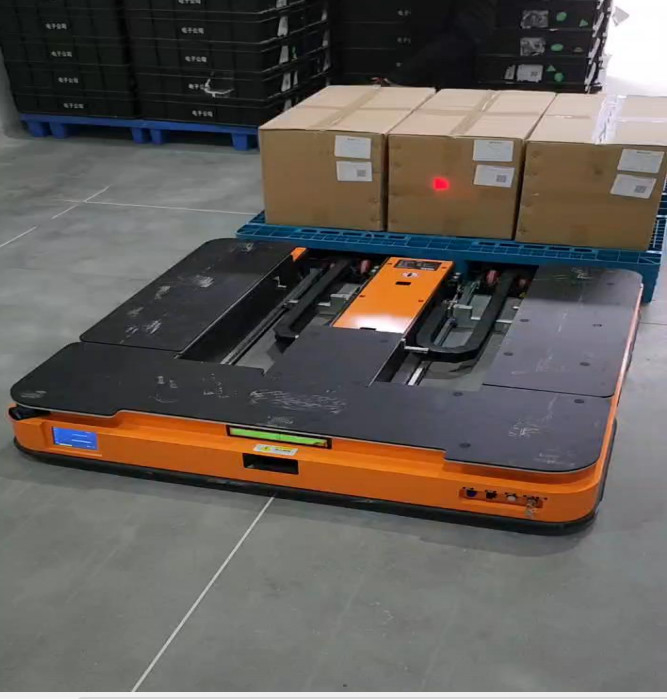

AGV Automated Guided Vehicle Pallet forklift AGV, forklift weight 1000kg, two-wheel differential drive
| Parameter | TY-600CD | TY-600CO | TY-1000CD |
|---|---|---|---|
| Model Number | YZ-600CD | YZ-600CO | YZ-1000CD |
| Abbreviation | 600差速 | 600全向 | 1000差速 |
| Part Number | 307302321 | 307302324 | 307302326 |
| Compatible Pallet (L*W) | 1200*800 (for pallets with width above 1000mm) | 1200*800 (for pallets with width above 1000mm) | 1200*800 (for pallets with width above 1000mm) |
| Pallet Fork Hole | W1≤140, W2≥600 | W1≤180, W2≥700 | W1≤180, W2≥700 |
| Pallet Length | 600≤L2≤1400 | 600≤L2≤1400 | 600≤L2≤1400 |
| Fork Hole Height | 100≤H1≤115 | 105≤H1≤120 | 105≤H1≤120 |
| Fork Width | 162 | 180 | 180 |
| Fork Center Distance | 370 | 440 | 440 |
| Fork Height | 90 | 95 | 95 |
| Overall Size (LWH) | 12501169202 | 12801150190 | 12501200190 |
| Rated Load (KG) | 600 | 1000 | 1000 |
| Weight (KG) | 350 | 340 | 340 |
| Battery | 48V24Ah | 48V28Ah | 48V28Ah |
Video
Video
Video
Video
Video
Video
Send your inquiry directly to us
