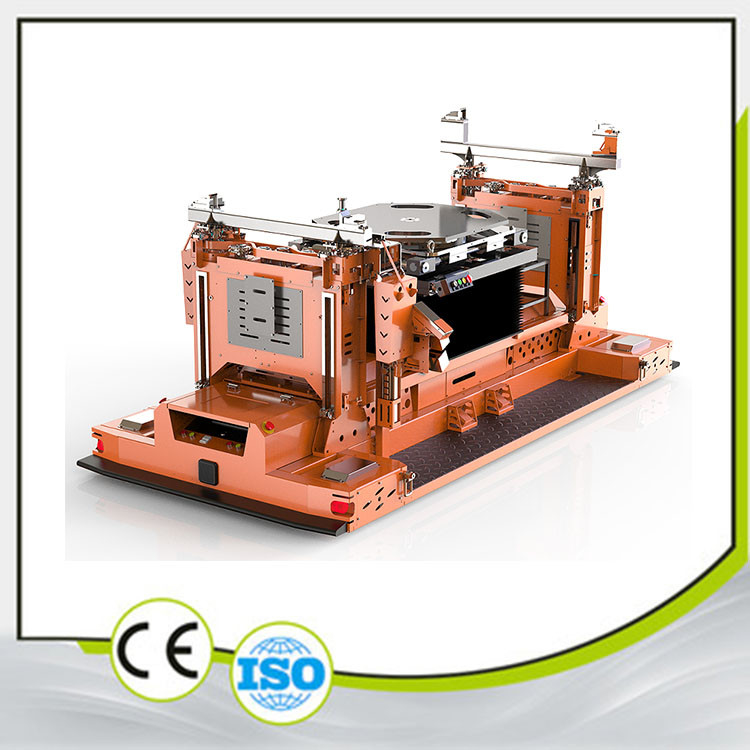

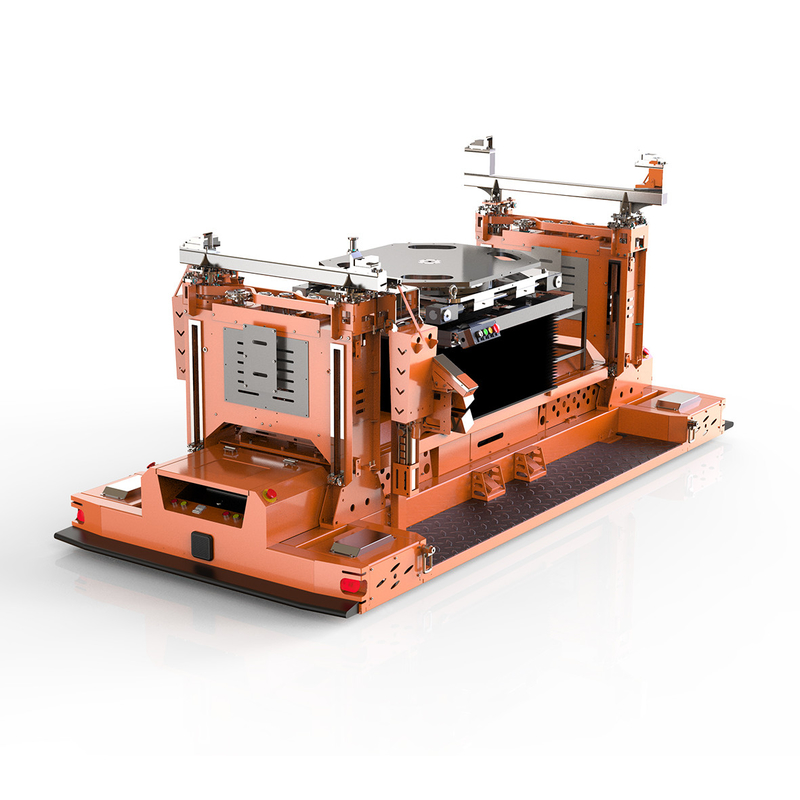

Name: Load 3T AGV Automated Guided Carts Vehicle Combined Three Lift Backpack
Brand: Guangzhou Tianyue Automation Technology Co., Ltd.
SKU: TY-FB-HZ-3
Availability: InStock

Load 3T AGV Automated Guided Carts Vehicle Combined Three Lift Backpack

Load 3T AGV Carts

Load 3T Automated Guided Carts

Three Lift Backpack AGV Carts

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TY-FB-HZ-3

Request A Quote

Item	Technical Parameters
Product Name	Triple-Lift Combined AGV
Product Dimensions	L x W x H mm (customizable according to customer requirements)
Loading Mode	Triple-lift platform, X±120mm, Y±50mm, Rotation ±2°
Load Capacity	3000 kg (customizable according to requirements)
Control Mode	PLC, Single-chip Microcomputer (customizable according to requirements)
Guidance Mode	Laser, QR Code, Magnetic Stripe (customizable according to requirements)
Travel Direction	Forward, Backward, Left turn, Right turn, Fork, 360° Rotation, Translation, Horizontal movement, Omnidirectional
Drive Mode	Dual-steering wheel drive
Drive Power Supply	DC 48V
Travel Speed	Linear: 0-40 meters/minute, Turning: 0-20 meters/minute
Repeat Positioning Accuracy	±5 millimeters
Allowed Road Surface Flatness	≤5 millimeters
Operating Mode	Can operate continuously for 24 hours
Climbing Ability	≤5%
Charging Mode	Online charging (side charging)
Obstacle Sensor Safety Range	Detection distance: ≤3 meters (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20 mm
Safety Protection	Front obstacle detection sensor, Dual-protection safety touch edge collision avoidance mechanism, Emergency stop switch
Alarm Mode	Audible and visual alarm, Three-color light, Music horn
Operating Noise	Below 70 decibels (A)
Battery	Type: Lithium iron phosphate battery, Voltage: 48V, Capacity: 210Ah
Design Life	>10 years
