Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-MAS-MQ-50
Document:

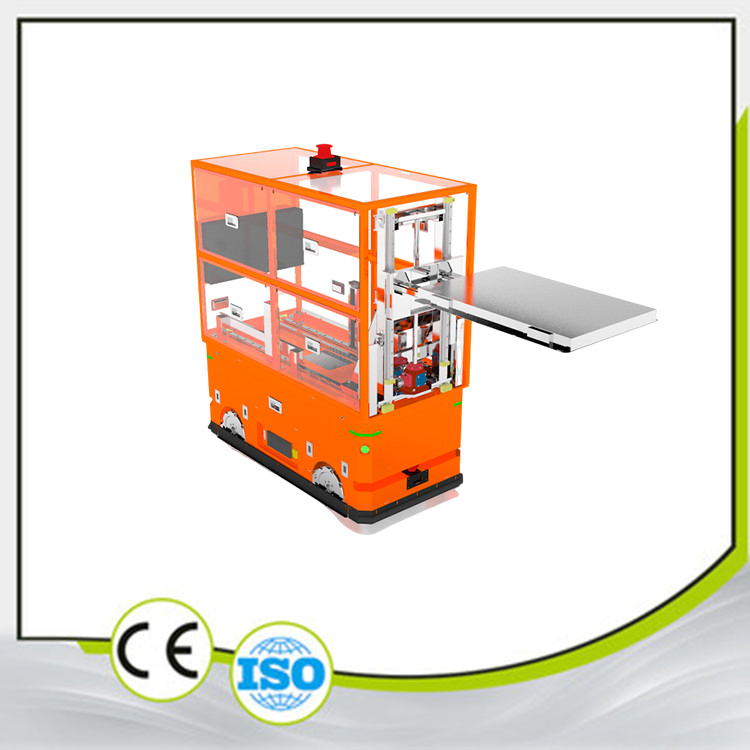

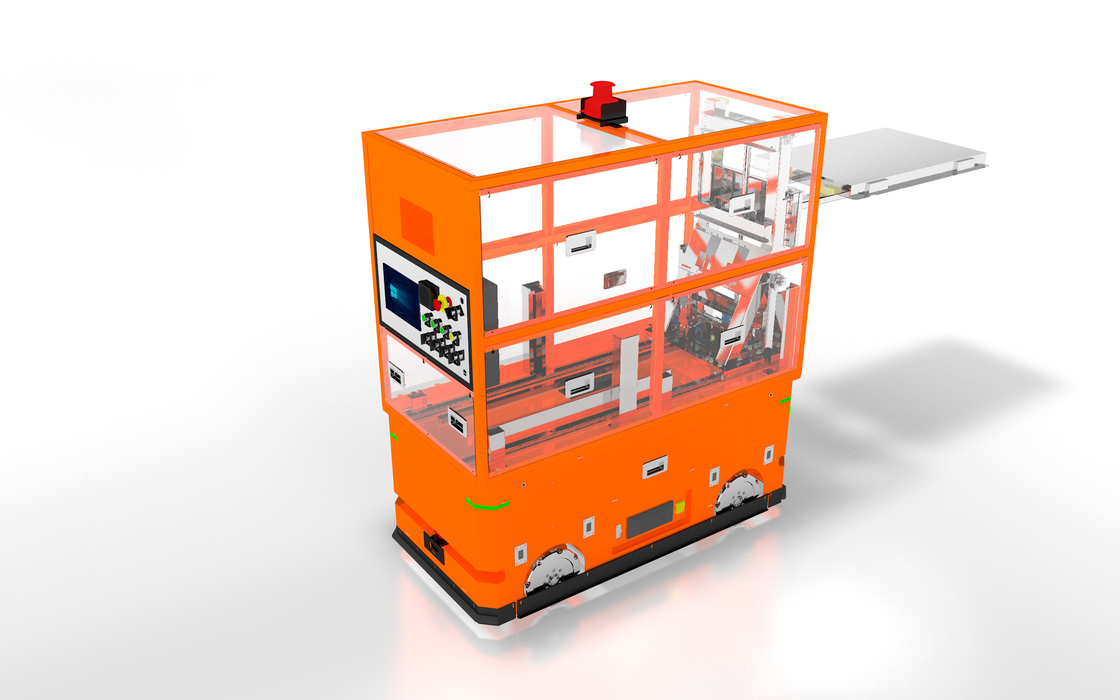

This omnidirectional AGV is built for semiconductor panel feeding, with a telescopic lift docking fork that extends 1200 mm and lifts to 1600 mm. The 50-100 kg payload is small, but the shell is stainless steel and the drive train is sealed, because the environment rather than the weight sets the specification. Servo motors hold the panel steady through the docking stroke.
Key FeaturesAGV Automated Guided Vehicle High-precision semiconductor panel machine docking omnidirectional AGVpanel load 50KG-100K
| Item | Technical Parameters |
|---|---|
| Product Name | Semiconductor Panel Feeding Omnidirectional AGV |
| Product Size | L × W × H mm (Customized according to customer requirements) |
| Loading Mode | Forward docking and extending to pick up goods, extension length 1200mm, lifting height 1600mm |
| Load Capacity | 50KG (According to requirements) |
| Control Mode | PLC, microcontroller (According to requirements) |
| Guidance Mode | Laser, QR code, magnetic stripe (According to requirements) |
| Travel Directions | Forward, backward, left turn, right turn, fork, 360° rotation, translation, lateral movement, omnidirectional |
| Drive Mode | Mecanum wheel drive |
| Drive Power | DC 48V |
| Travel Speed | Linear: 0-40 m/min, Turning: 0-20 m/min |
| Repeat Positioning Accuracy | ±5mm |
| Allowable Road Surface Flatness | ≤5 mm |
| Operating Mode | Continuous operation for 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online charging (side charging) |
| Obstacle Sensor Safety Sensing Range | Detection distance: ≤3 m (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20 mm |
| Safety Protection | Front obstacle detection sensor, double protection safety touch edge collision prevention mechanism, emergency stop switch |
| Alarm Form | Audible and visual alarm, tri-color light, music horn |
| Operating Noise | Less than 70 dB (A) |
| Battery | Type: Lithium Iron Phosphate Battery, Voltage: 48V, Capacity: 80Ah |
| Design Life | >10 years |
Guangzhou Tianyue Automation Technology Co., Ltd. has been building customised mobile robot platforms since 2019. Our workshop combines chassis fabrication, wiring, software commissioning and load testing under one roof, which is why a non-standard request can move from drawing to a running vehicle without being passed around. Around 80-90% of what we build leaves China for overseas plants, and our team of 60-80 engineers, technicians and assemblers supports customers from first layout study to on-site handover.
Customised robots, empowering efficient logistics. Tell us your load, aisle and docking tolerance, and we will size the platform around them.
