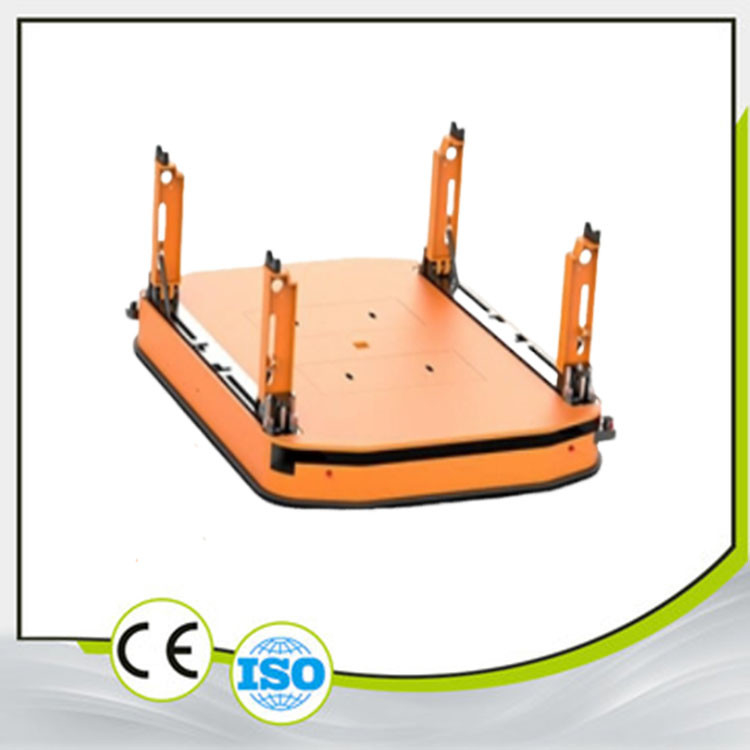

PLC Control AGV Automated Guided Vehicle With 3000KG Load weight

PLC Control AGV Automated Guided Vehicle With 3000KG Load weight

PLC Control AGV Automated Guided Vehicle

AGV Automated Guided Vehicle 3000KG Load

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TY-FB-JJD-3000

Document:

Product Brochure PDF

Contact Us
Request A Quote
PLC Control AGV Automated Guided Vehicle With 3000KG Load weight
PLC Control AGV Automated Guided Vehicle With 3000KG Load weight PLC Control AGV Automated Guided Vehicle With 3000KG Load weight
Product Details
Motor Way:
Servo Motor
Drive Mode:
Dual Steering Wheel Drive
Size:
Customization
Power Supply:
Lithium Iron Phosphate
Carrying Mode:
Backpack
Load Weight:
3000KG
Highlight:

PLC Control AGV Automated Guided Vehicle

,

AGV Automated Guided Vehicle 3000KG Load

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden box
Delivery Time
60 wrok days
Payment Terms
T/T
Supply Ability
100
RELATED PRODUCTS
Good price Light Load Conveyor Chassis AGV Automated Guided Carts Carrying 100KG Differential Drive online Video

Light Load Conveyor Chassis AGV Automated Guided Carts Carrying 100KG Differential Drive

Get Best Price
Good price Customized Front Fork AGV Automated Guided Vehicle Capacity 100KG Customized Size online Video

Customized Front Fork AGV Automated Guided Vehicle Capacity 100KG Customized Size

Get Best Price
Good price 300KG AGV Vehicle Double Layer Transmission Of Photovoltaic Materials In Narrow Channels online Video

300KG AGV Vehicle Double Layer Transmission Of Photovoltaic Materials In Narrow Channels

Get Best Price
Good price Dive Traction AGV Automated Guided Vehicle Traction Weight 1000KG Differential Drive online Video

Dive Traction AGV Automated Guided Vehicle Traction Weight 1000KG Differential Drive

Get Best Price
Contact Us
13570415240
mkliangjintian@gmail.com
Contact Now
Product Description

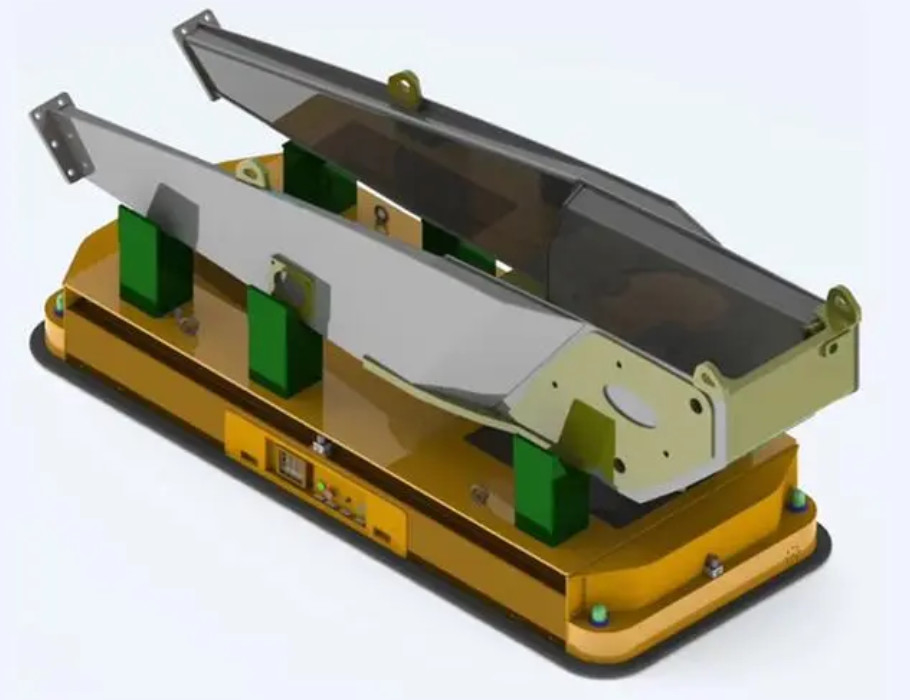

Custom Clamp Load Platform AGV Technical Specifications

Item Technical Parameters
Product Name Custom Clamp Load Platform AGV
Product Dimensions L x W x H mm (customizable)
Loading Mode Custom clamp load transport, tailored for irregular material load clamps
Load Capacity 3000KG (customizable)
Control Mode PLC, Microcontroller (customizable)
Navigation Mode Laser, QR code, Magnetic tape (customizable)
Travel Direction Forward, backward, left turn, right turn, bifurcation, 360° rotation, lateral, transverse, omnidirectional
Drive Mode Steering wheel drive
Drive Steering Power 1000W * 2, 400W * 2
Drive Power Supply DC 48V
Travel Speed Straight: 0-40 m/min, Turning: 0-20 m/min
Repeat Positioning Accuracy ±5mm
Allowed Surface Flatness ≤5 mm
Working Mode Can work continuously for 24 hours
Climbing Ability ≤5%
Charging Mode Online charging (side charging)
Obstacle Sensor Safety Sensing Range Detection distance: ≤3 m (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20 mm
Safety Protection Front obstacle detection sensor, dual protection safety edge anti-collision mechanism, emergency stop switch
Alarm Mode Audible and visual alarm, tri-color light, musical horn
Working Noise Below 70 dB (A)
Battery Type: Lithium iron phosphate battery, Voltage: 48V, Capacity: 150Ah (customizable)
Design Life >10 years
