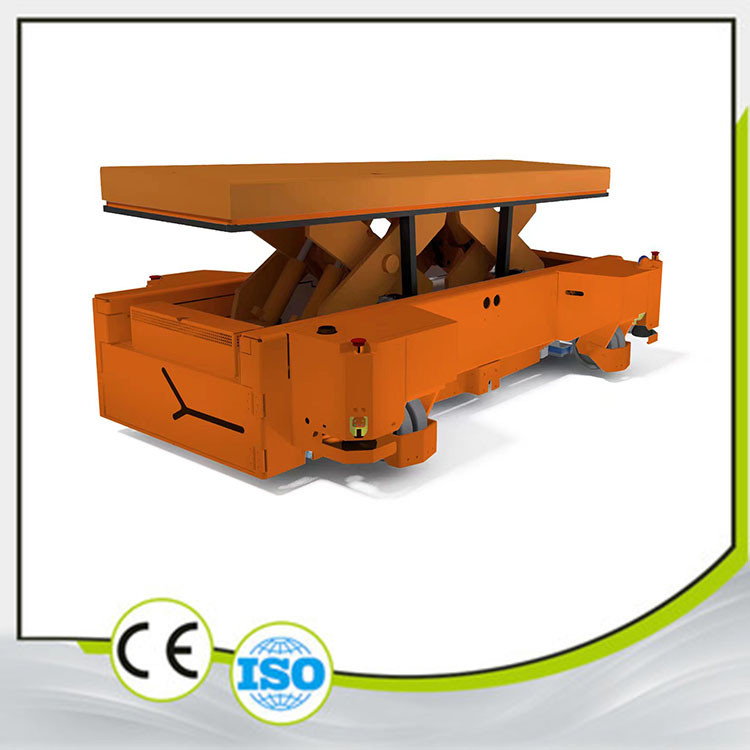

Name: Load Capacity 10T AGV Automatic Guided Vehicle Electro-Hydraulic Scissor Mechanism Four Steering Wheel Drive
Brand: Guangzhou Tianyue Automation Technology Co., Ltd.
SKU: TY-FB-JSD-10000
Availability: InStock

Load Capacity 10T AGV Automatic Guided Vehicle Electro-Hydraulic Scissor Mechanism Four Steering Wheel Drive

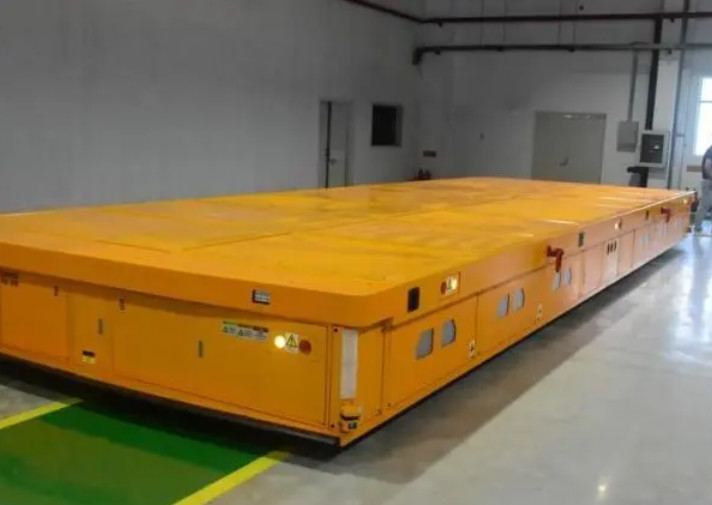

10T Load AGV Automatic Guided Vehicle

Hydraulic Scissor AGV Automatic Guided Vehicle

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TY-FB-JSD-10000

Request A Quote

AGV Automatic Guided Vehicle Load Capacity 10T, Electro-Hydraulic Scissor Mechanism, Four Steering Wheel Drive

Heavy-Duty Lifting Omnidirectional Platform AGV Technical Specifications

Item	Technical Parameters
Product Name	Heavy-Duty Lifting Omnidirectional Platform AGV
Product Dimensions	L x W x H mm (customizable)
Loading Mode	Electric hydraulic platform lifting, lifting stroke customizable 1-2M
Load Capacity	1000KG-10000KG (customizable)
Control Mode	PLC, Microcontroller (customizable)
Navigation Mode	Laser, QR code, Magnetic tape (customizable)
Travel Direction	Forward, backward, left turn, right turn, bifurcation, 360° rotation, lateral, transverse, omnidirectional
Drive Mode	Dual steering wheel drive or four steering wheels
Drive Steering Power	3000W * 4, 750W * 4
Drive Power Supply	DC 48V
Travel Speed	Straight: 0-40 m/min, Turning: 0-20 m/min
Repeat Positioning Accuracy	±5mm
Allowed Surface Flatness	≤5 mm
Working Mode	Can work continuously for 24 hours
Climbing Ability	≤5%
Charging Mode	Online charging (side charging)
Obstacle Sensor Safety Sensing Range	Detection distance: ≤3 m (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20 mm
Safety Protection	Front obstacle detection sensor, dual protection safety edge anti-collision mechanism, emergency stop switch
Alarm Mode	Audible and visual alarm, tri-color light, musical horn
Working Noise	Below 70 dB (A)
Battery	Type: Lithium iron phosphate battery, Voltage: 48V, Capacity: 200Ah
Design Life	>10 years

Load Capacity 10T AGV Automatic Guided Vehicle Electro-Hydraulic Scissor Mechanism Four Steering Wheel Drive

10T Load AGV Automatic Guided Vehicle

Hydraulic Scissor AGV Automatic Guided Vehicle

10T Load AGV Automatic Guided Vehicle

Hydraulic Scissor AGV Automatic Guided Vehicle
