Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-FB-CCD-150
Document:
Video
Video
Video
Video

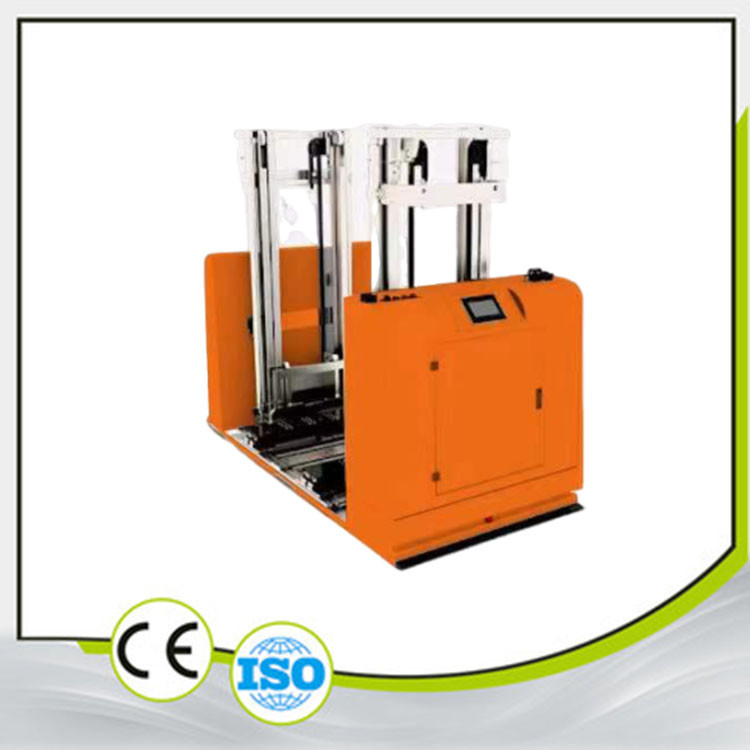

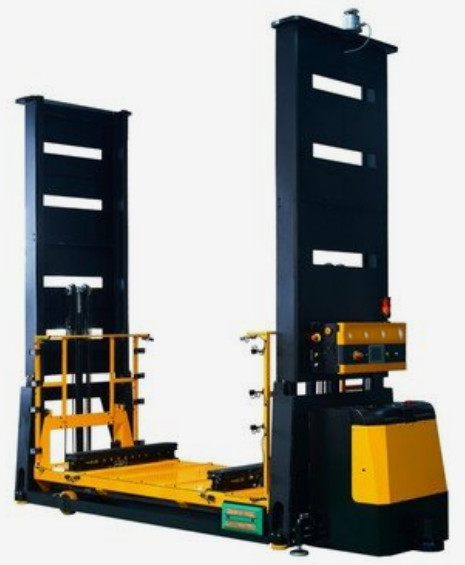

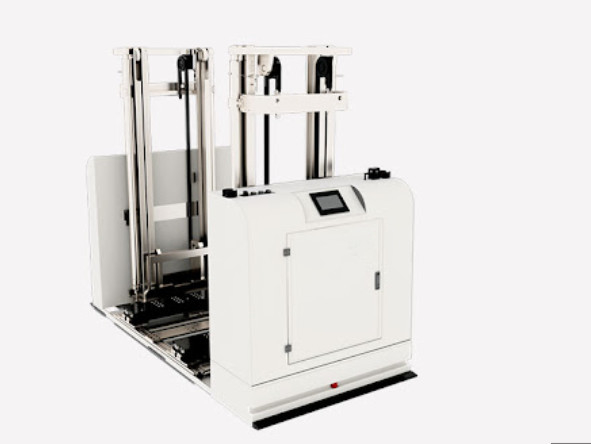

AGV Automated Guided Vehicle Dual-Wheel Drive, Side Docking Telescopic Lifting Platform, Load 300 Kg, Custom Design
| Item | Technical Parameters |
|---|---|
| Product Name | Dual Steering Wheel Side Fork Telescopic Platform AGV |
| Product Size | L × W × H mm (Customized) |
| Loading Mode | Side-extended platform fork to pick up goods, extension length 1000mm, lifting height 1500mm (customizable) |
| Load Capacity | 300KG (According to requirements) |
| Design | Customized design |
| Control Mode | PLC, microcontroller (According to requirements) |
| Guidance Mode | Laser, QR code, magnetic stripe (According to requirements) |
| Travel Directions | Forward, backward, left turn, right turn, fork, 360° rotation |
| Drive Mode | Dual steering wheel drive |
| Drive Power | 750W * 2 |
| Steering Power | 400W * 2 |
| Drive Power Supply | DC 48V |
| Travel Speed | Linear: 0-40 m/min, Turning: 0-20 m/min |
| Repeat Positioning Accuracy | ±5mm |
| Allowable Road Surface Flatness | ≤5 mm |
| Operating Mode | Continuous operation for 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online charging (side charging) |
| Obstacle Sensor Safety Sensing Range | Detection distance: ≤3 m (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20 mm |
| Safety Protection | Front obstacle detection sensor, double protection safety touch edge collision prevention mechanism, emergency stop switch |
| Alarm Form | Audible and visual alarm, tri-color light, music horn |
| Applicable Industries | Semiconductor, 3C electronics, photovoltaic |
| Battery | Type: Lithium Iron Phosphate Battery, Voltage: 48V, Capacity: 80Ah |
| Design Life | >10 years |
