Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TYM-7000-70-2500W-B
Document:

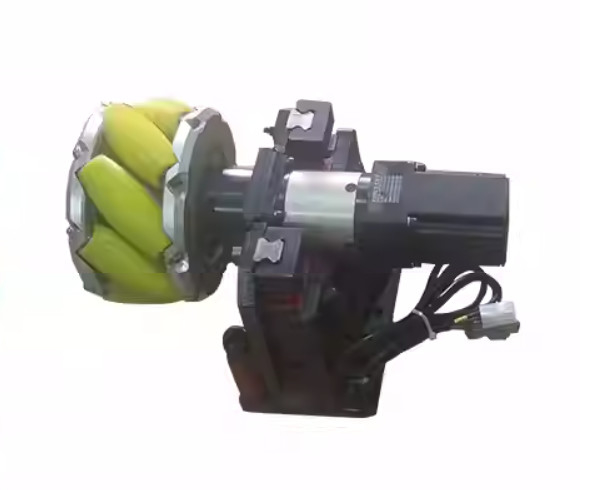

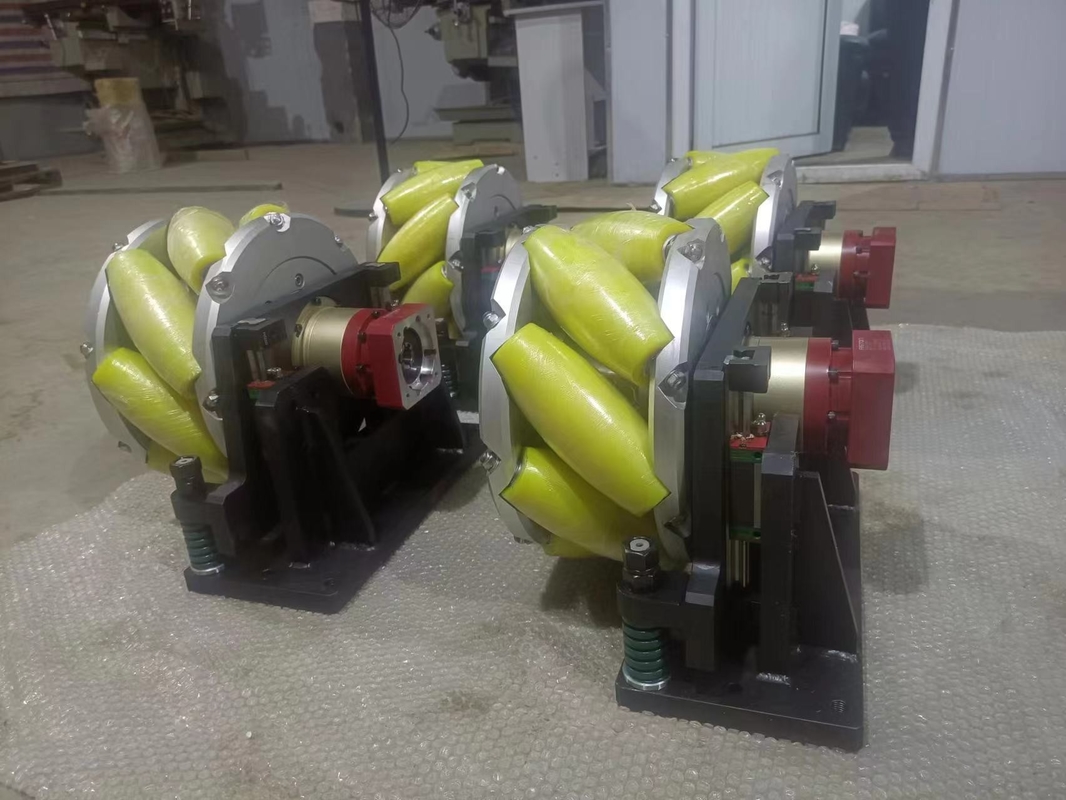

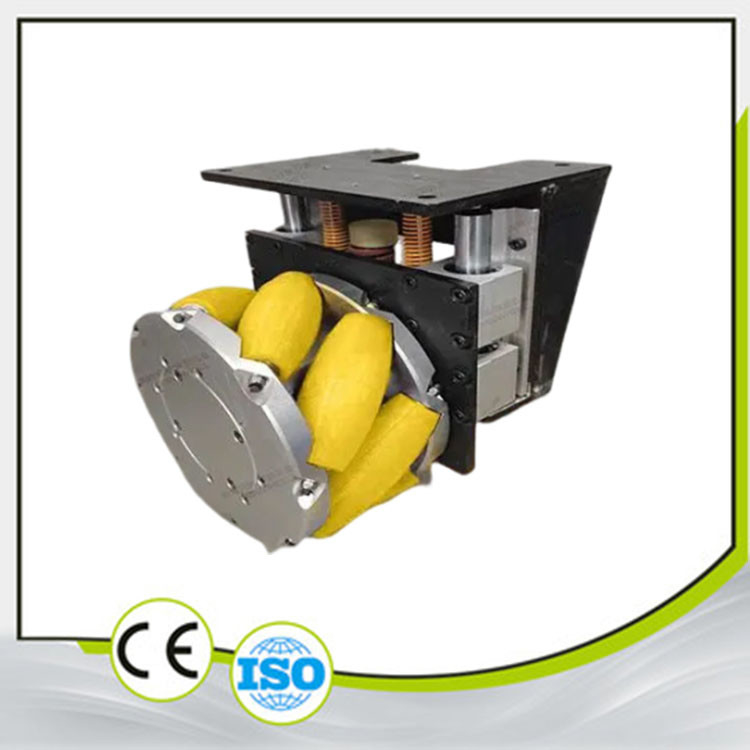

AGV Mecanum wheel drive assembly, shock-absorbing integrated four-wheel load 7000KG, power 2500W wheel diameter 430mm
Mecanum wheel heavy-duty shock-absorbing drive assembly, used for heavy-duty AGV. Using servo motor integrated drive assembly, single drive load 1-10T can be customized.
| Parameter | Specification |
|---|---|
| Model | TYM-7000-70-2500W-B |
| Wheel Diameter (mm) | 430 |
| Roller Material | Imported Polyurethane |
| 4-wheel Rated Load (kg) | 7000 |
| Rated Voltage (V) | 48 |
| Rated Power (W) | 2500 |
| Rated Output Speed (rpm) | 42.8 |
| Rated Torque (N·m) | 550 |
| Shock Absorption Type | Spring Shock Absorption |
| Reduction Ratio | 1:70 |
| Encoder Type | Incremental |
| Maximum Speed (m/min) | 57 |
| Normal Operating Speed (m/min) | 30 |
