Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TYM-5000-50-1500W-C
Document:

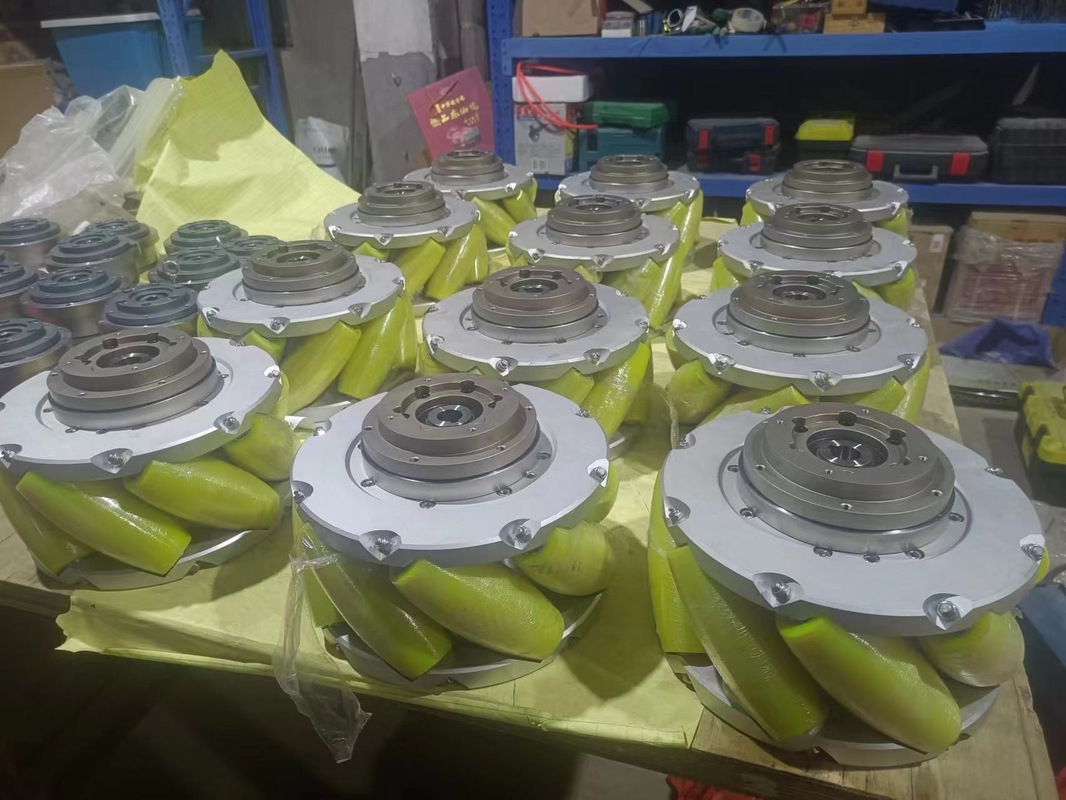

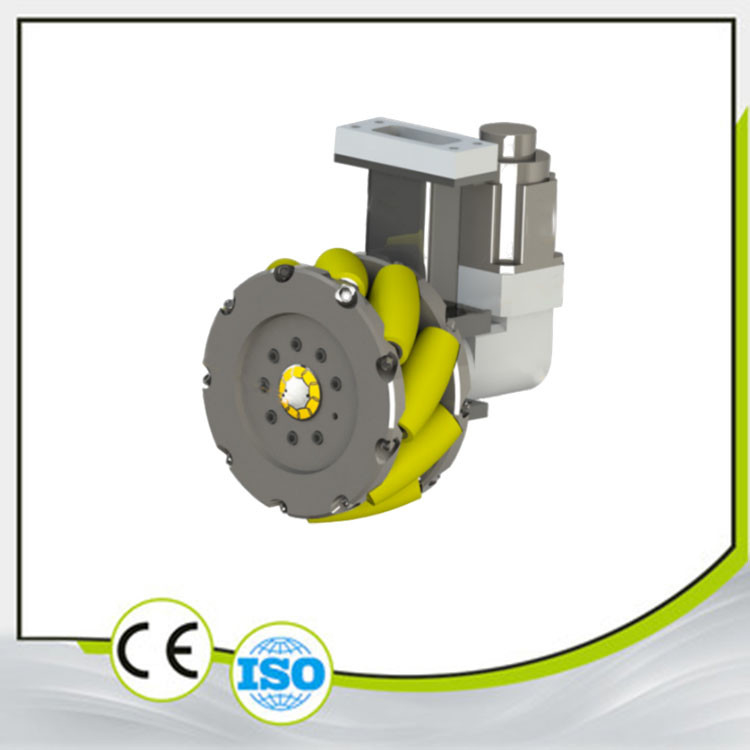

AGV Mecanum wheel drive assembly, shock-absorbing integrated four-wheel load 6000KG, power 1500W wheel diameter 406mm
| Parameter | Specification |
|---|---|
| Model | TYM-5000-50-1500W-C |
| Wheel Diameter (mm) | 406 |
| Roller Material | Imported Polyurethane |
| 4-wheel Rated Load (kg) | 6000 |
| Rated Voltage (V) | 48 |
| Rated Power (W) | 1500 |
| Rated Output Speed (rpm) | 60 |
| Rated Torque (N·m) | 250 |
| Shock Absorption Type | Spring Shock Absorption |
| Reduction Ratio | 1:50 |
| Encoder Type | Incremental |
| Maximum Speed (m/min) | 70 |
| Normal Operating Speed (m/min) | 40 |
