Name: Diameter 355mm AGV Drive Wheel Assembly Load 4000KG Power 1200W
Brand: Guangzhou Tianyue Automation Technology Co., Ltd.
SKU: TYM-4000-57-1200W-B
Availability: InStock

Home > products > AGV Mecanum Wheel Drive Components >

Diameter 355mm AGV Drive Wheel Assembly Load 4000KG Power 1200W

Load 4000KG AGV Drive Wheel

Diameter 355mm AGV Drive Wheel

drive wheel assembly Load 4000KG

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TYM-4000-57-1200W-B

Document:

Product Brochure PDF

Request A Quote

Product Details

Drive Mode:

Servo Motor

Wheel Diameter:

Diameter 355mm

Voltage:

48V

Driving Power:

1200w

Series Type:

Mecanum Wheel Drive

Highlight:

Load 4000KG AGV Drive Wheel

Diameter 355mm AGV Drive Wheel

drive wheel assembly Load 4000KG

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

wooden box

Delivery Time

30 work days

Payment Terms

T/T

Supply Ability

100

Power 1000W AGV Mecanum Wheel Drive Assembly Load 3000KG Diameter 305mm

Get Best Price

Video

1500W AGV Mecanum Wheel Drive Assembly Integrated Four Wheel Load 6000KG

Get Best Price

Video

430mm Dia AGV Mecanum Wheel Drive Assembly Shock Absorbing Load 7000KG

Get Best Price

AGV Parts Heavy Duty Mecanum Wheels Drive Assembly Power 400W

Get Best Price

13570415240

mkliangjintian@gmail.com

Contact Now

Product Description

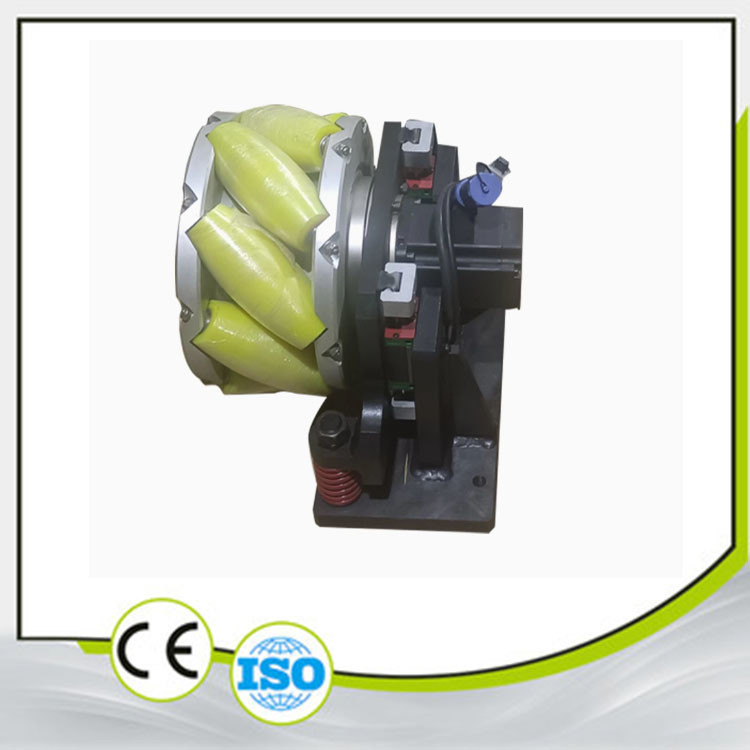

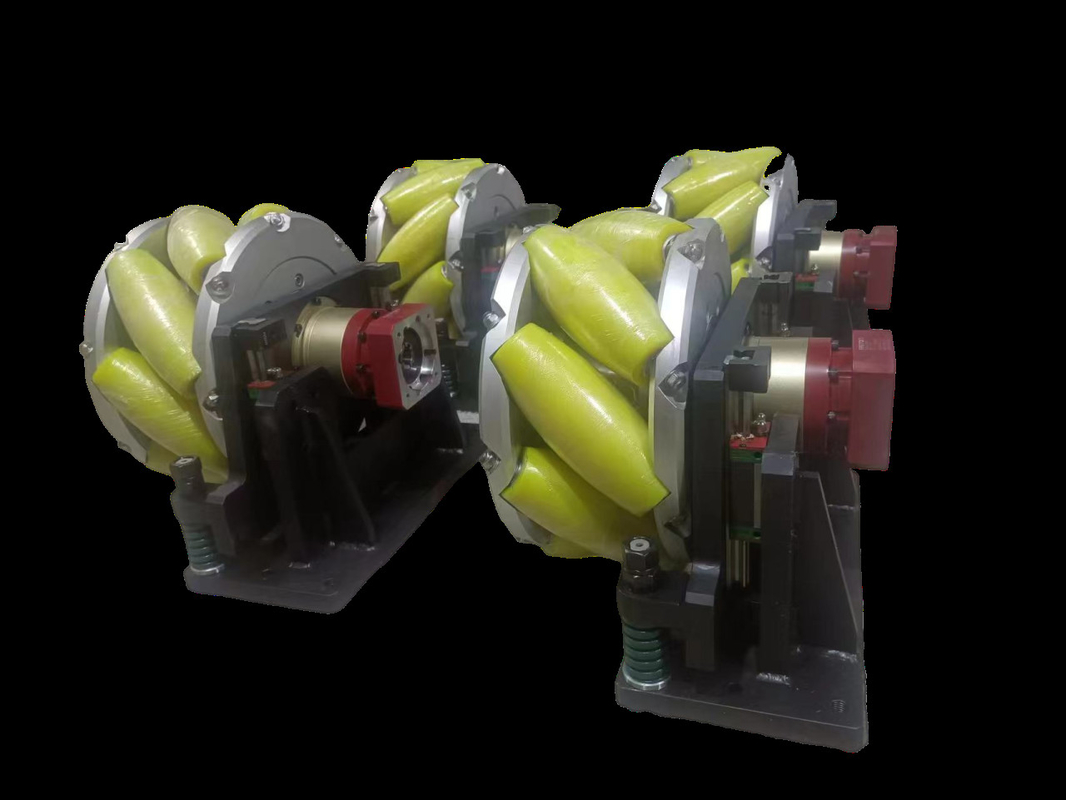

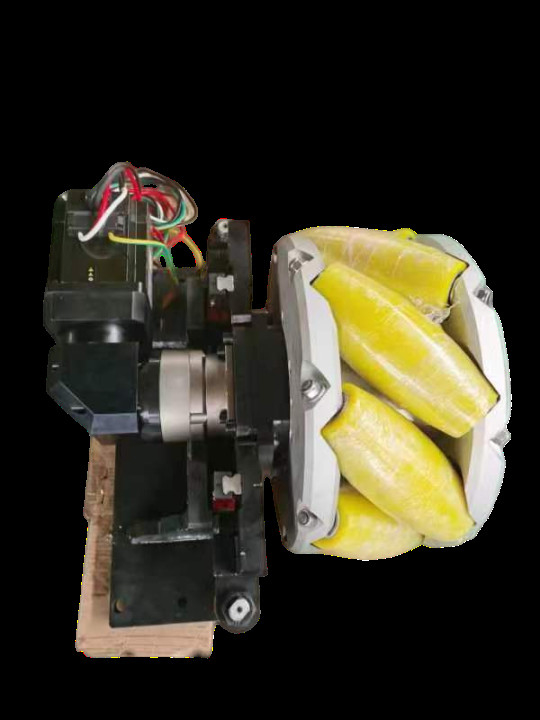

AGV Mecanum wheel drive assembly, shock-absorbing integrated four-wheel load 4000KG, power 1200W wheel diameter 355mm

Product Description

Parameter	Specification
Model	TYM-4000-57-1200W-B
Wheel Diameter (mm)	355
Roller Material	Imported Polyurethane
4-wheel Rated Load (kg)	4000
Rated Voltage (V)	48
Rated Power (W)	1200
Rated Output Speed (rpm)	50
Rated Torque (N·m)	200
Shock Absorption Type	Spring Shock Absorption
Reduction Ratio	1:50
Encoder Type	Incremental
Maximum Speed (m/min)	58
Normal Operating Speed (m/min)	40
