Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TYM-3000-30-1000W
Document:

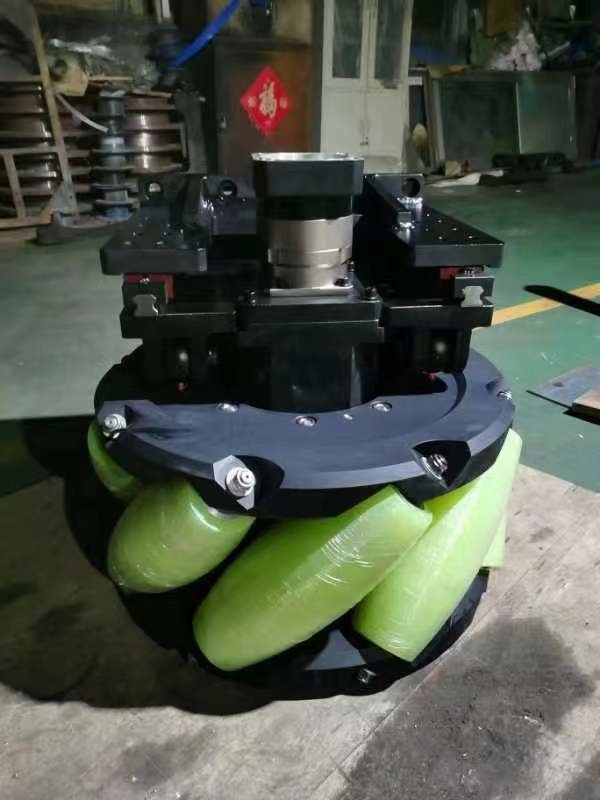

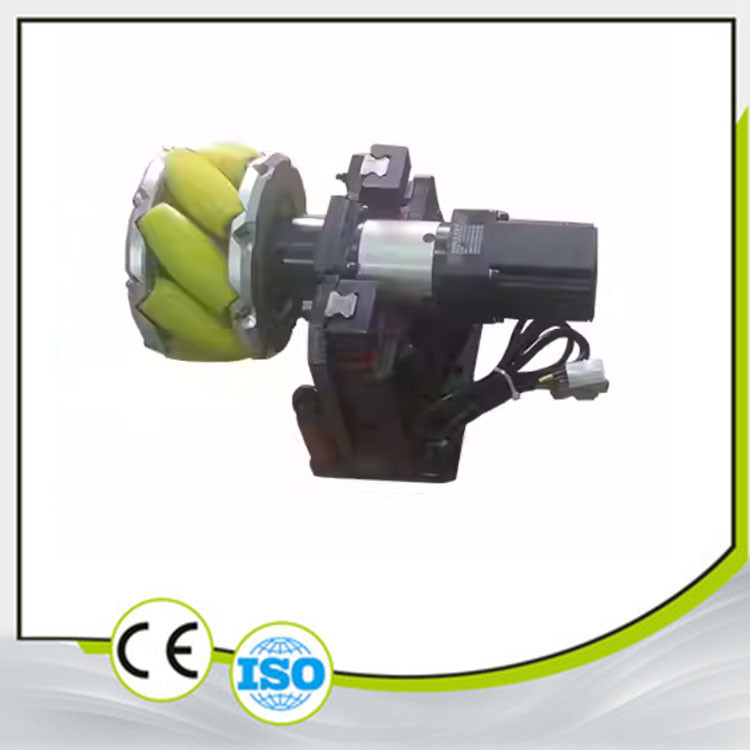

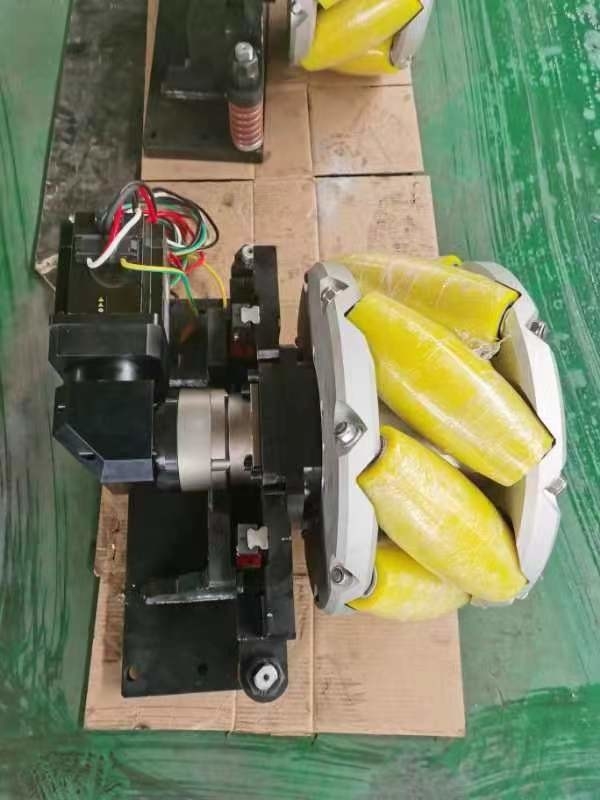

AGV Mecanum wheel drive assembly, shock-absorbing integrated four-wheel load 3000KG, power 1000W wheel diameter 305mm
| Parameter | Specification |
|---|---|
| Model | TYM-3000-30-1000W |
| Wheel Diameter (mm) | 305 |
| Roller Material | Imported Polyurethane |
| 4-wheel Rated Load (kg) | 3000 |
| Rated Voltage (V) | 48 |
| Rated Power (W) | 1000 |
| Rated Output Speed (rpm) | 60 |
| Rated Torque (N·m) | 120 |
| Shock Absorption Type | Spring Shock Absorption |
| Reduction Ratio | 1:50 |
| Encoder Type | Incremental |
| Maximum Speed (m/min) | 57.5 |
| Normal Operating Speed (m/min) | 40 |
Video
Video
Video
Video
