AGV Components Mecanum Wheel Drive Assembly 8000KG Load Diameter 445mm

AGV Components Mecanum Wheel Drive Assembly 8000KG Load Diameter 445mm

AGV Components Mecanum Wheel Drive

Wheel Drive Assembly 8000KG Load

Diameter 445mm agv drive wheel

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TYM-4000-70-1500W-B

Document:

Product Brochure PDF

Contact Us
Request A Quote
AGV Components Mecanum Wheel Drive Assembly 8000KG Load Diameter 445mm AGV Components Mecanum Wheel Drive Assembly 8000KG Load Diameter 445mm AGV Components Mecanum Wheel Drive Assembly 8000KG Load Diameter 445mm AGV Components Mecanum Wheel Drive Assembly 8000KG Load Diameter 445mm
Product Details
Drive Mode:
Servo Motor
Wheel Diameter:
445mm
Voltage:
48V
Driving Power:
1500W
Series Type:
Mecanum Wheel Drive
Highlight:

AGV Components Mecanum Wheel Drive

,

Wheel Drive Assembly 8000KG Load

,

Diameter 445mm agv drive wheel

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden box
Delivery Time
30 work days
Payment Terms
T/T
Supply Ability
100
RELATED PRODUCTS
Good price Power 1000W AGV Mecanum Wheel Drive Assembly Load 3000KG Diameter 305mm online Video

Power 1000W AGV Mecanum Wheel Drive Assembly Load 3000KG Diameter 305mm

Get Best Price
Good price 1500W AGV Mecanum Wheel Drive Assembly Integrated Four Wheel Load 6000KG online Video

1500W AGV Mecanum Wheel Drive Assembly Integrated Four Wheel Load 6000KG

Get Best Price
Good price 430mm Dia AGV Mecanum Wheel Drive Assembly Shock Absorbing Load 7000KG online Video

430mm Dia AGV Mecanum Wheel Drive Assembly Shock Absorbing Load 7000KG

Get Best Price
Good price AGV Parts Heavy Duty Mecanum Wheels Drive Assembly Power 400W online

AGV Parts Heavy Duty Mecanum Wheels Drive Assembly Power 400W

Get Best Price
Contact Us
13570415240
mkliangjintian@gmail.com
Contact Now
Product Description

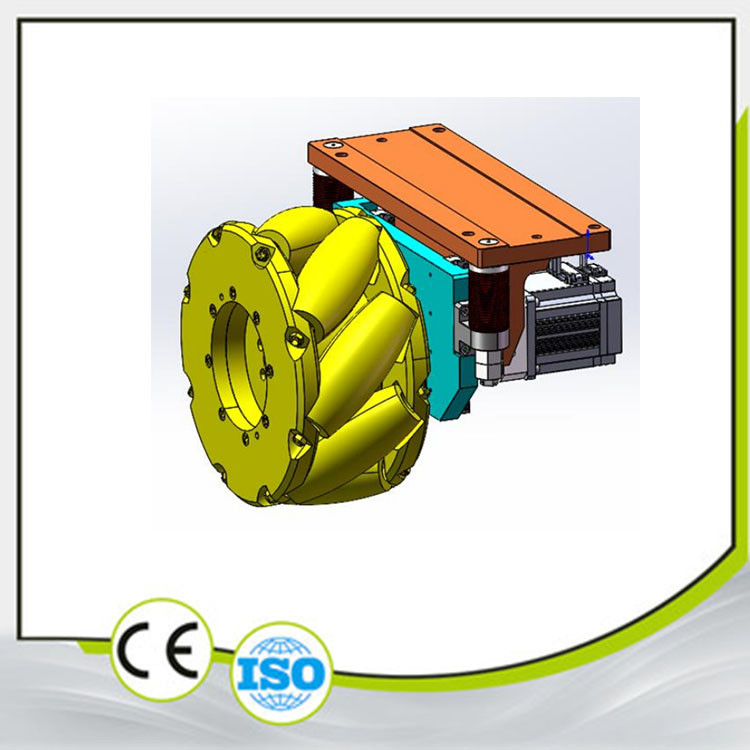

AGV Mecanum wheel drive assembly, shock-absorbing integrated four-wheel load 8000KG, power 1500W, wheel diameter 445mm
Product Description
Parameter Specification
Model TYM-4000-70-1500W-B
Wheel Diameter (mm) 445
Roller Material Imported Polyurethane
4-wheel Rated Load (kg) 8000
Rated Voltage (V) 48
Rated Power (W) 1500
Rated Output Speed (rpm) 42.8
Rated Torque (N·m) 180
Shock Absorption Type Spring Shock Absorption
Reduction Ratio 1:70
Encoder Type Incremental
Maximum Speed (m/min) 60
Normal Operating Speed (m/min) 40
