Power 3600W AGV Mecanum Wheel Drive Assembly Integrated Four Wheel Load 20000KG

Power 3600W AGV Mecanum Wheel Drive Assembly Integrated Four Wheel Load 20000KG

3600W AGV Mecanum Wheel

3600W agv drive wheel

20000KG Load drive wheel assembly

Place of Origin:

GUANGZHOU

Brand Name:

TIANYUE

Certification:

3c.ce

Model Number:

TYM-20000-70-3600W-B

Document:

Product Brochure PDF

Contact Us
Request A Quote
Power 3600W AGV Mecanum Wheel Drive Assembly Integrated Four Wheel Load 20000KG Power 3600W AGV Mecanum Wheel Drive Assembly Integrated Four Wheel Load 20000KG Power 3600W AGV Mecanum Wheel Drive Assembly Integrated Four Wheel Load 20000KG Power 3600W AGV Mecanum Wheel Drive Assembly Integrated Four Wheel Load 20000KG
Product Details
Drive Mode:
Servo Motor
Wheel Diameter:
609mm
Voltage:
48V
Driving Power:
3600W
Series Type:
Mecanum Wheel Drive
Highlight:

3600W AGV Mecanum Wheel

,

3600W agv drive wheel

,

20000KG Load drive wheel assembly

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
wooden box
Delivery Time
30 work days
Payment Terms
T/T
Supply Ability
100
RELATED PRODUCTS
Good price Power 1000W AGV Mecanum Wheel Drive Assembly Load 3000KG Diameter 305mm online Video

Power 1000W AGV Mecanum Wheel Drive Assembly Load 3000KG Diameter 305mm

Get Best Price
Good price 1500W AGV Mecanum Wheel Drive Assembly Integrated Four Wheel Load 6000KG online Video

1500W AGV Mecanum Wheel Drive Assembly Integrated Four Wheel Load 6000KG

Get Best Price
Good price 430mm Dia AGV Mecanum Wheel Drive Assembly Shock Absorbing Load 7000KG online Video

430mm Dia AGV Mecanum Wheel Drive Assembly Shock Absorbing Load 7000KG

Get Best Price
Good price AGV Parts Heavy Duty Mecanum Wheels Drive Assembly Power 400W online

AGV Parts Heavy Duty Mecanum Wheels Drive Assembly Power 400W

Get Best Price
Contact Us
13570415240
mkliangjintian@gmail.com
Contact Now
Product Description

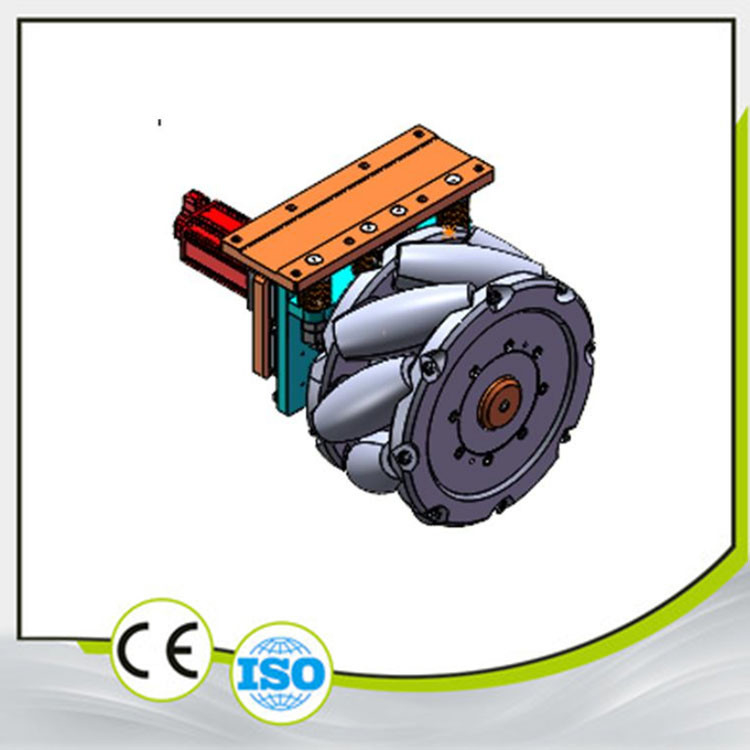

AGV Mecanum wheel drive assembly, shock-absorbing integrated four-wheel load 20000KG, power 3600W wheel diameter 609mm
Product Description
Parameter Specification
Model TYM-20000-70-3600W-B
Wheel Diameter (mm) 609
Roller Material Imported Polyurethane
4-wheel Rated Load (kg) 20000
Rated Voltage (V) 48
Rated Power (W) 3600
Rated Output Speed (rpm) 21.4
Rated Torque (N·m) 1600
Shock Absorption Type Spring Shock Absorption
Reduction Ratio 1:70
Encoder Type Incremental
Maximum Speed (m/min) 40
Normal Operating Speed (m/min) 30
