Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-AEEM112
Document:
Video

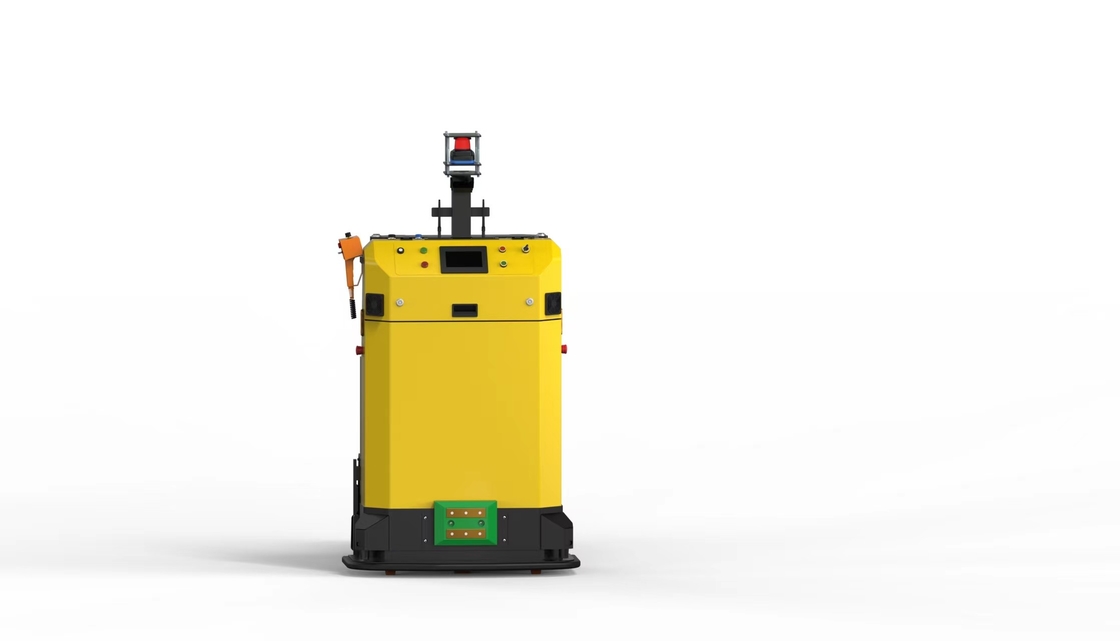

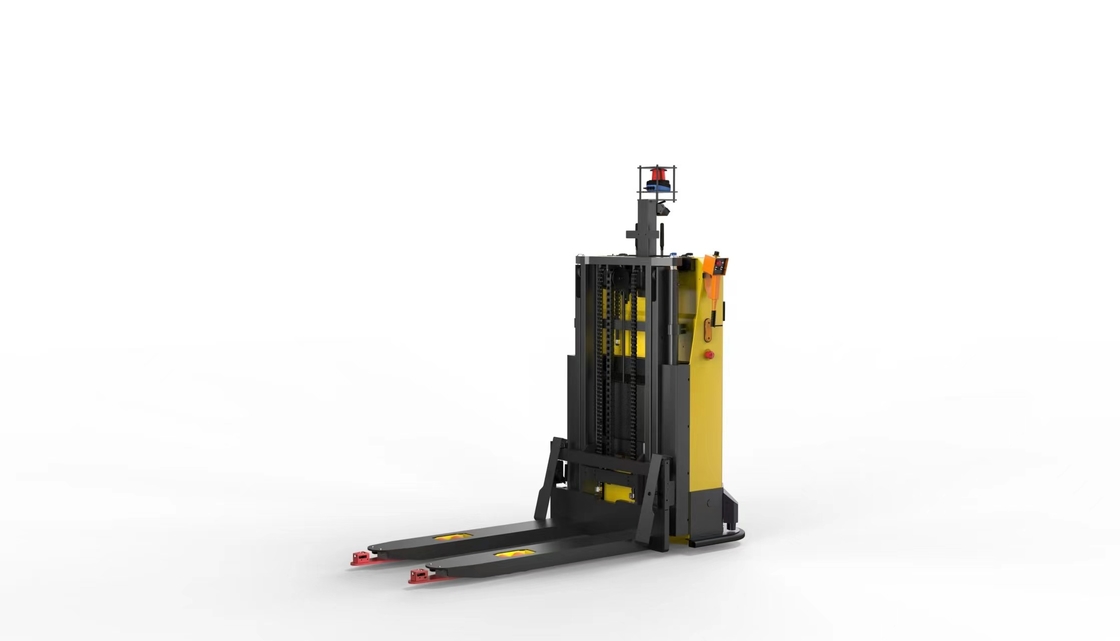

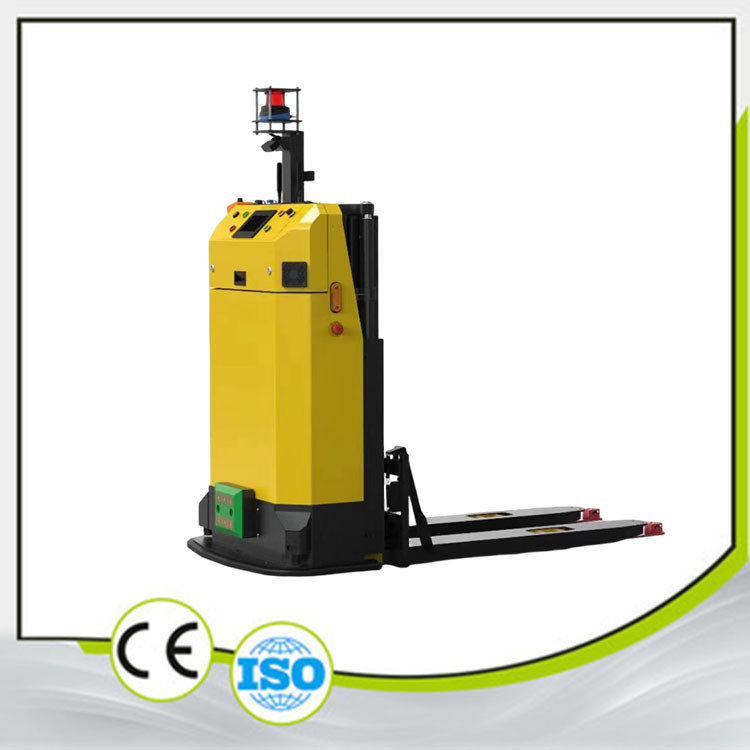

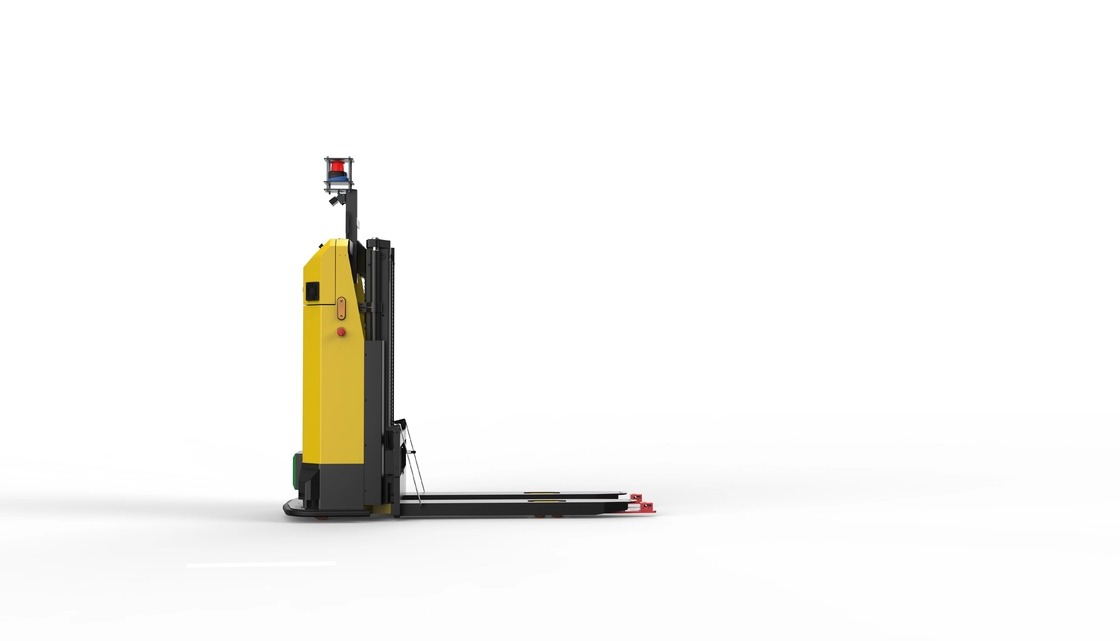

Intelligent Unmanned ForkliftPush-up forklift, load capacity 1.2T, low temperature -20°-30°, can be used in cold storage
| 分类 | 参数 | 值 |
|---|---|---|
| 标识性 Identification | 产品型号 Product model | AEEM112 |
| 额定载荷 Load capacity | 1200 kg | |
| 载荷中心 Load center | 600 mm | |
| 轴距 Wheelbase | 890 mm | |
| 基本尺寸 Dimension | 门架总高(货叉最低时) Height with mast closed | 2101.5 mm |
| 起升高度 Lifting height | 1800 mm | |
| 最大高度(货叉最高时) Height with mast extended | 2335 mm | |
| 总长(含安全触边) Overall length | 1681 mm | |
| 总宽(含安全触边) Overall width | 1009 mm | |
| 货叉尺寸 Fork dimensions (Forging) | 180/66/1150 mm | |
| 货叉外宽 Fork width | 560/680 mm | |
| 最小离地间隙 Min ground clearance | 30 mm | |
| 直角堆垛通道宽度,托盘1000x1200(1000沿货叉边) Aisle width for pallets 1000x1200 (fork along side 1000) | 2206 mm | |
| 转弯半径 Turning radius | 1267 mm | |
| 性能 Performance | 行驶速度 满载/空载 Travel speed loaded/unloaded | 5.2/6 km/h |
| 提升速度 满载/空载 Lift speed loaded/unloaded | 90/120 mm/s | |
| 下降速度 满载/空载 Lowering speed loaded/unloaded | 125/80 mm/s | |
| 最大爬坡能力 满载/空载 Max gradeability loaded/unloaded | 3/5 % | |
| 电机 Motor | 驱动电机功率 Drive motor rating | 1.5 kW |
| 提升电机功率 Lift motor rating | 2.2 kW | |
| 蓄电池电压/容量 Battery voltage/nominal capacity | 24/100 V/Ah (铅酸铁锂) |
