Place of Origin:
GUANGZHOU
Brand Name:
TIANYUE
Certification:
3c.ce
Model Number:
TY-J1000
Document:
Video
Video
Video
Video

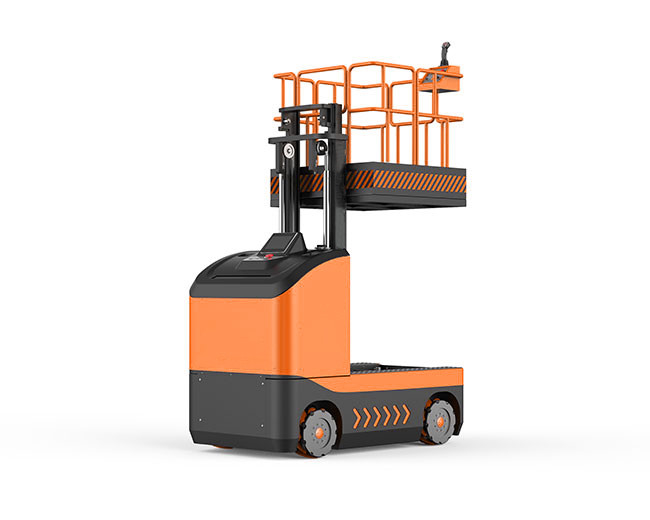

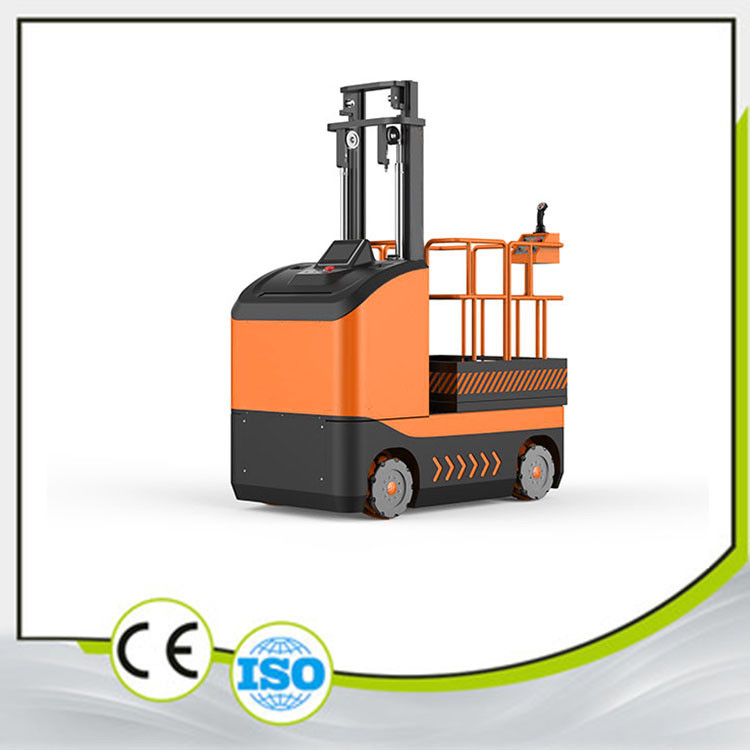

AGV Automated Guided Vehicle Omni-directional picking AGV, high-precision walking picking, load 1000KG
| No. | Item | Unit | Design Value |
|---|---|---|---|
| Machine Characteristics | |||
| 1 | Product Model | TY-J1000 | |
| 2 | Navigation Mode | Magnetic Navigation / Vision Navigation / Laser Navigation | |
| 3 | Rated Load (Q) | kg | 1000 |
| 4 | Load Center (C) | mm | 600 |
| 5 | Self Weight (with battery) | kg | 2800 |
| 6 | Travel Brake | Electromagnetic Brake | |
| 7 | Tire Type | Mecanum Wheel | |
| 8 | Number of Wheels | pcs | 4 |
| Dimension Parameters | |||
| 9 | Standard Lifting Height (h2) | mm | 3000 |
| 10 | Max Height During Operation (h2) | mm | 3670 |
| 11 | Overall Length (excluding pedals) (L) | mm | 2125 |
| 12 | Overall Width (W) | mm | 1160 |
| 13 | Overall Height (h3) | mm | 2450 |
| 14 | Wheelbase (Y) | mm | 1350 |
| 15 | Front Suspension (X) | mm | 358 |
| 16 | Minimum Ground Clearance (m) | mm | 47 |
| 17 | Minimum Working Aisle Width (Ast) | mm | 2325 |
| Performance Parameters | |||
| 18 | Max Forward Speed (unloaded/loaded) | km/h | 3.5/3 |
| 19 | Max Side Speed (unloaded/loaded) | km/h | 2.5/2.1 |
| 20 | Max Lifting Speed (unloaded/loaded) | mm/s | 130/90 |
| 21 | Max Gradeability (unloaded/loaded) | % | 8/6 |
| 22 | Diagonal Dimension (A) | mm | 2400 |
| Others | |||
| 23 | Battery Specifications | V/Ah | 48/240 |
PRODUCT DESCRIPTION
The agv picking car subverts the traditional picking car concept. Zero turning radius, lateral movement, no dead ends in all directions, arbitrary drift, and easy and intelligent shuttle in narrow lanes. Optional remote control.
